Shift Interlock, A/T

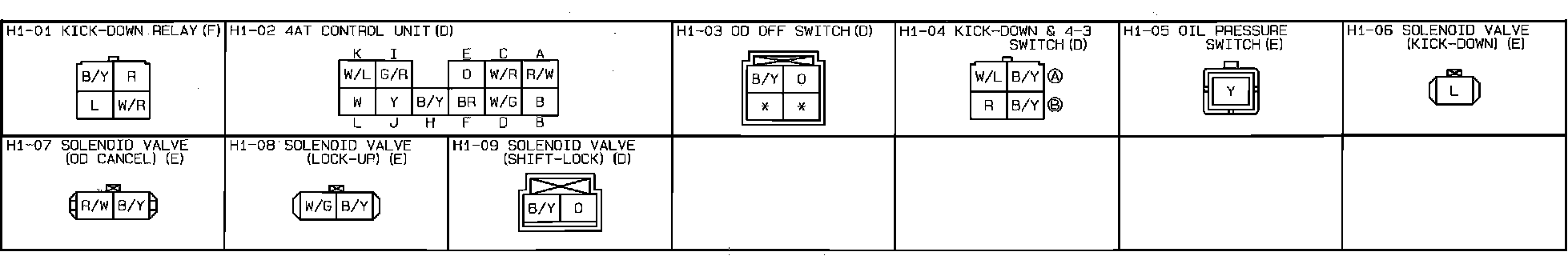

4AT Control System And Shift Lock System. Connector Identification:



EC-AT Control System And Shift Lock System. Connector Identification:
