Home
>>
Mazda
>>
1992
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

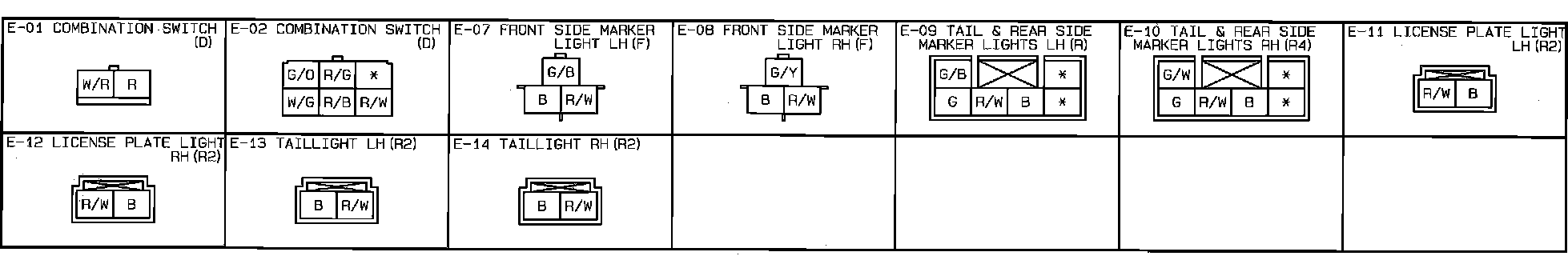

Tail, License Plate And Side Marker Lamps. Connector Identification:
