Home
>>
Mazda
>>
1992
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension
Suspension

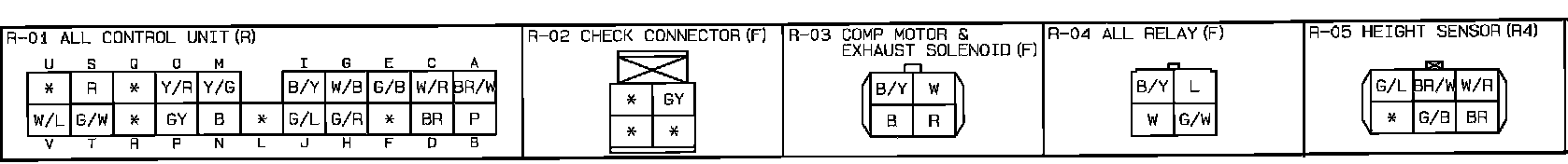

Automatic Load Levelling System (ALL). Connector Identification:
