Refrigerant Control Solenoid Valve: Service and Repair

MAGNETIC SOLENOID VALVE

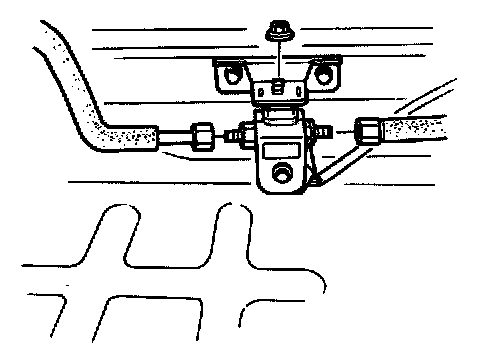

Removal





1. Discharge the refrigeration system.
2. Disconnect the negative battery cable.
3. Remove the grommet and disconnect the magnetic solenoid valve connector.
4. Disconnect the refrigerant pipes.
5. Remove the nut and the magnetic solenoid valve.


Installation
- Install in the reverse order of removal.

Tightening torque
Magnetic solenoid valve fitting nuts: 12.8-14.7 N.m [130-150 kgf.cm, 113-130 in.lbf]
