Input Devices and Engine Conditions
Input Devices and Engine Conditions

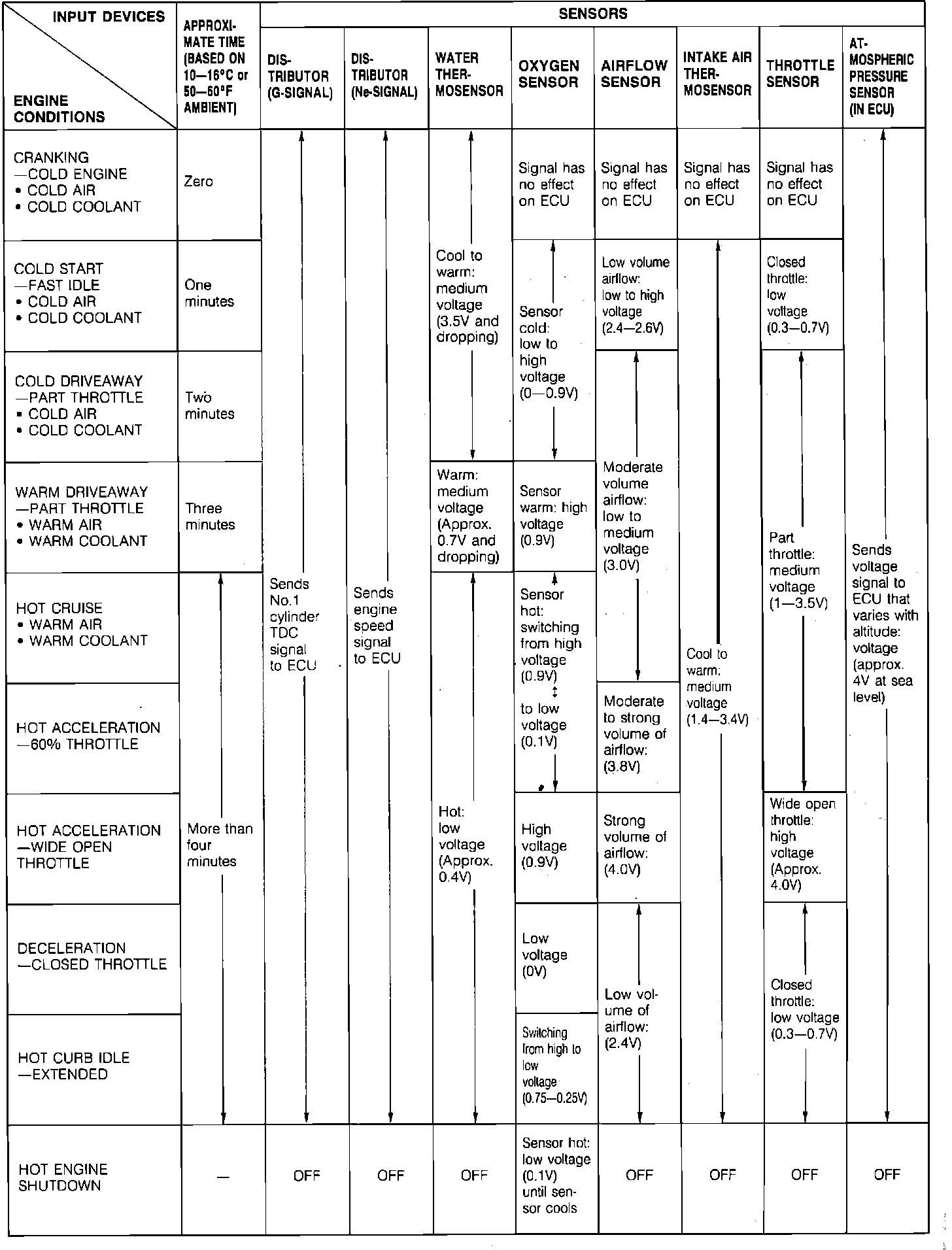

SENSORS
Input Devices And Engine Conditions (Sensors):
SWITCHES
Input Devices And Engine Conditions (Switches):
