Catalytic Converter: Service and Repair

Catalytic Converter R&R:

^ Remove in sequence shown.
^ Check all components for damage, deterioration, and restriction. Repair or replace as needed.
^ Install in reverse order of removal.

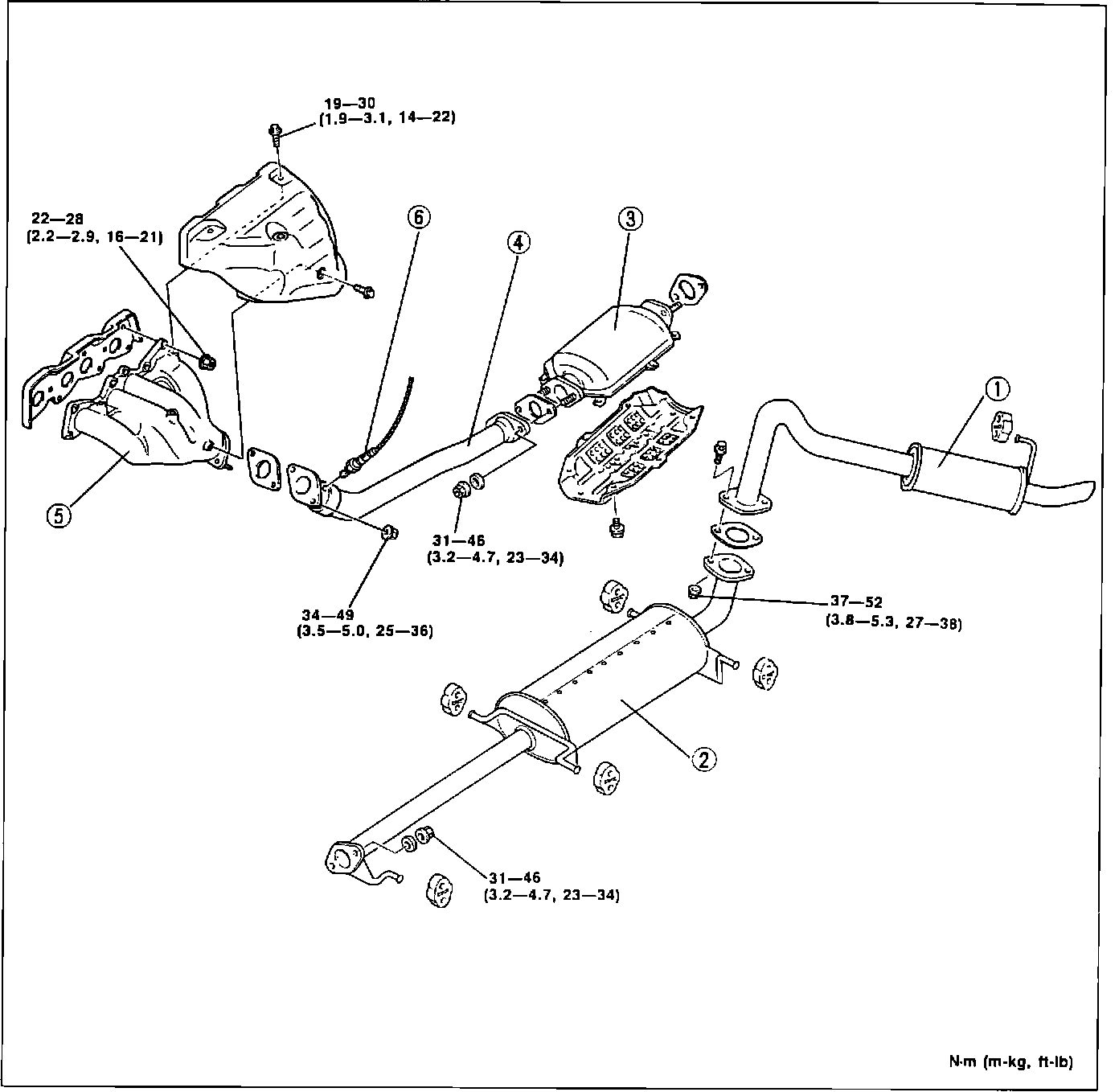

COMPONENTS

1. After silencer.
2. Main silencer.
3. Catalytic converter.
4. Front exhaust pipe.
5. Exhaust manifold.
6. Oxygen sensor.
