Home
>>
Mazda
>>
1992
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Connector Locations
Connector Locations

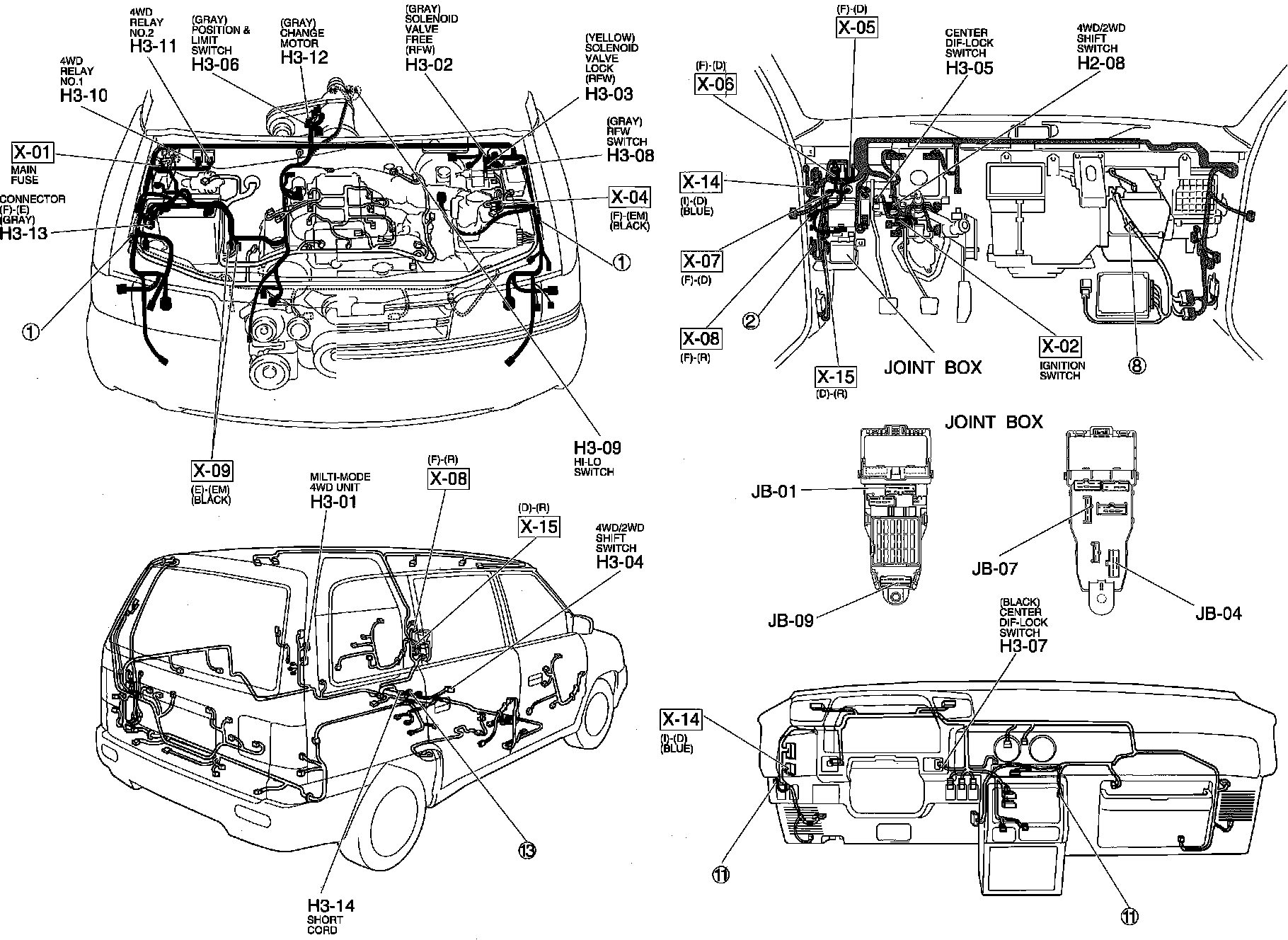

Multi-Mode 4WD System. Harness And Connector Locations:
