Ignition Switch - Replacement Manual Correction

Bulletin No. 026/92
Issued 7/22/92
Revised

Category
W

Applicable Model/s
1991-'92 Navajo

Subject:
WORKSHOP MANUAL CORRECTION

DESCRIPTION

The ignition switch used on 1992 Navajo models is a single lever locking type. This replaces the double lever locking type used in the production of 1991 Models. Pages N-04-47 through N-04-50 of the 1991 and 1992 Navajo Workshop Manuals have been modified to reflect these changes.

NOTE:
For removal of the double lever locking type ignition switch in 1991 models, the procedure in the existing Workshop Manual should be used.

Please replace the current pages with the replacement pages provided.

^ 1991-'92 Navajo

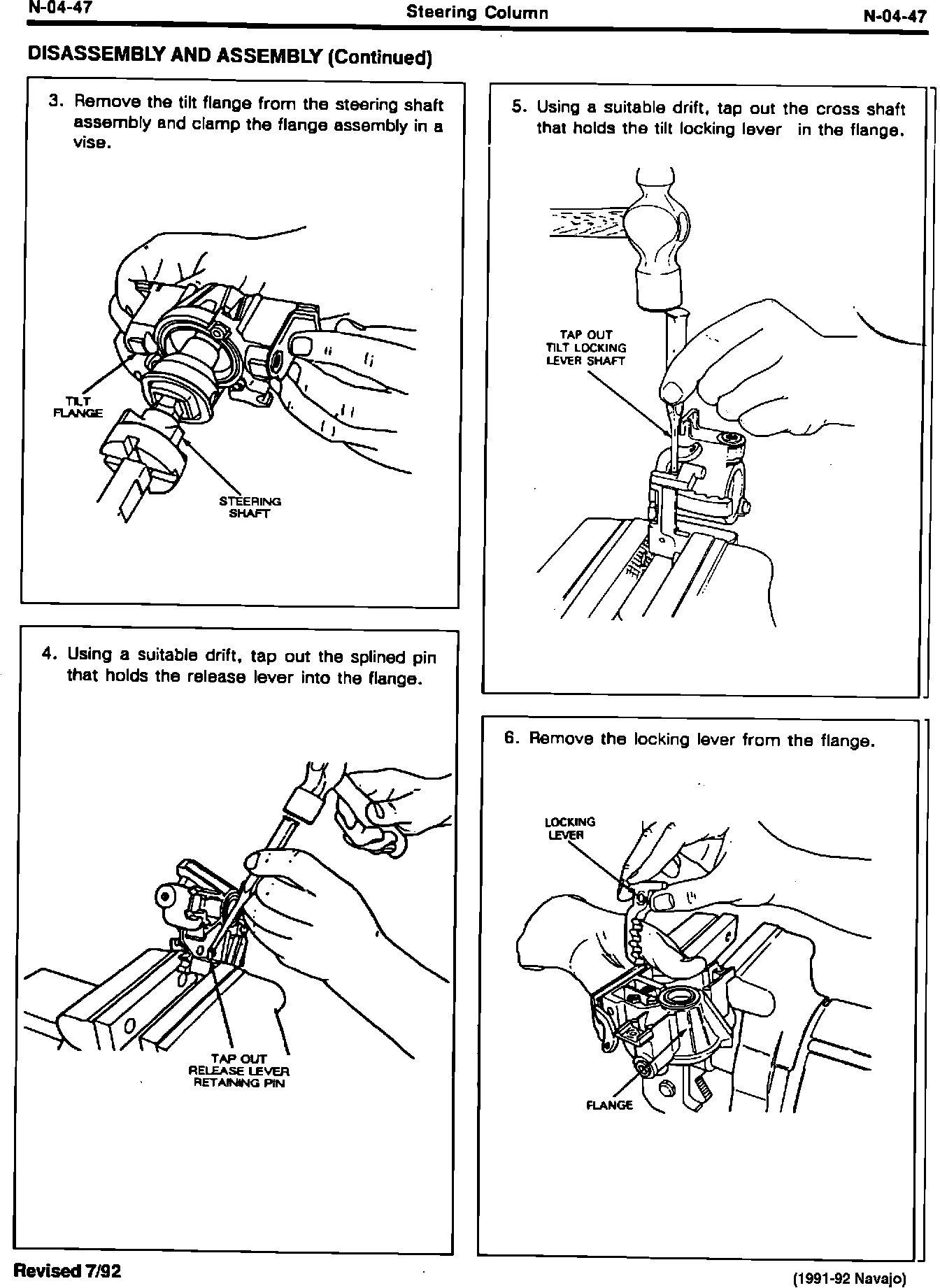

N-04-47

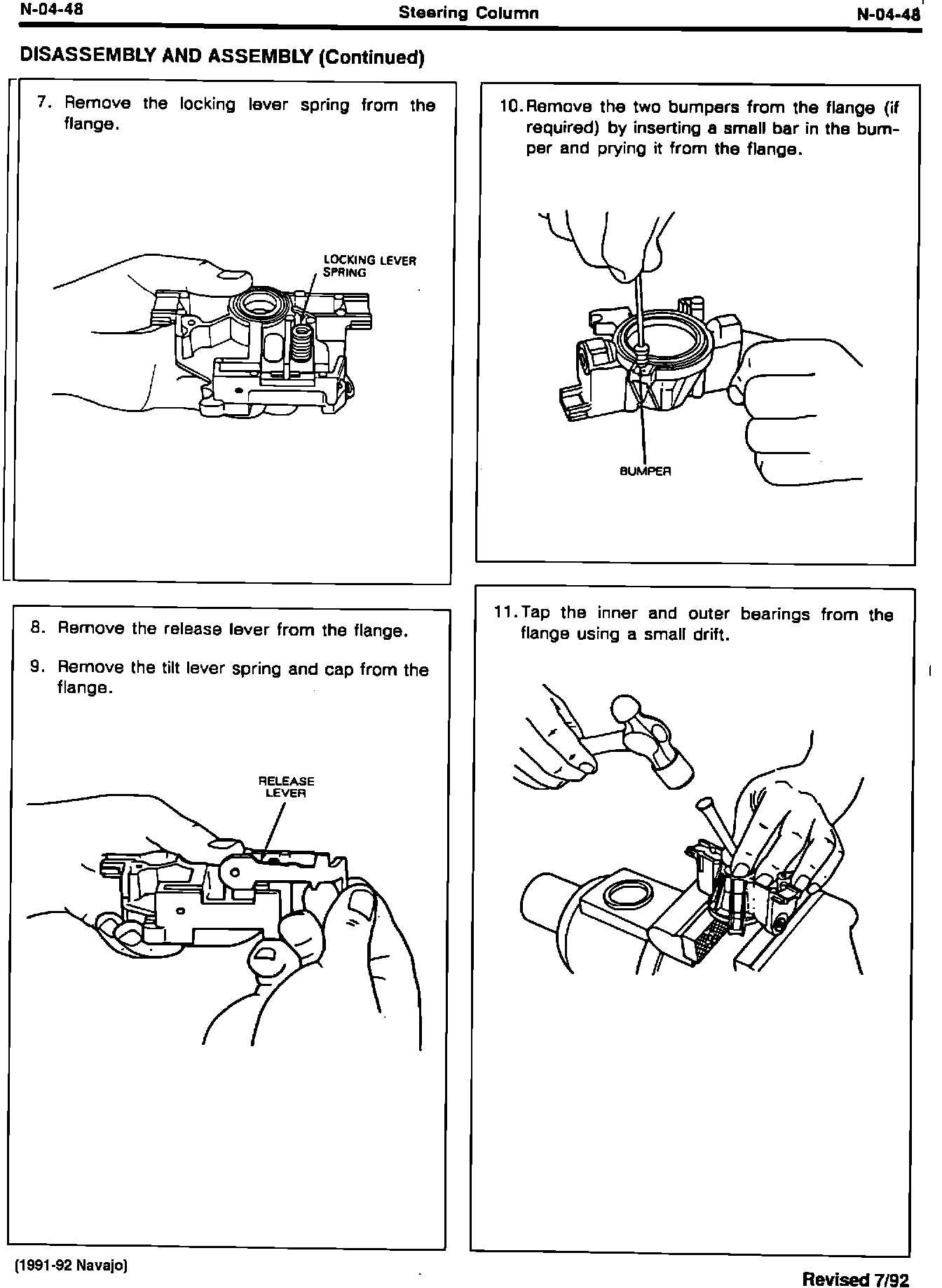

N-04-48

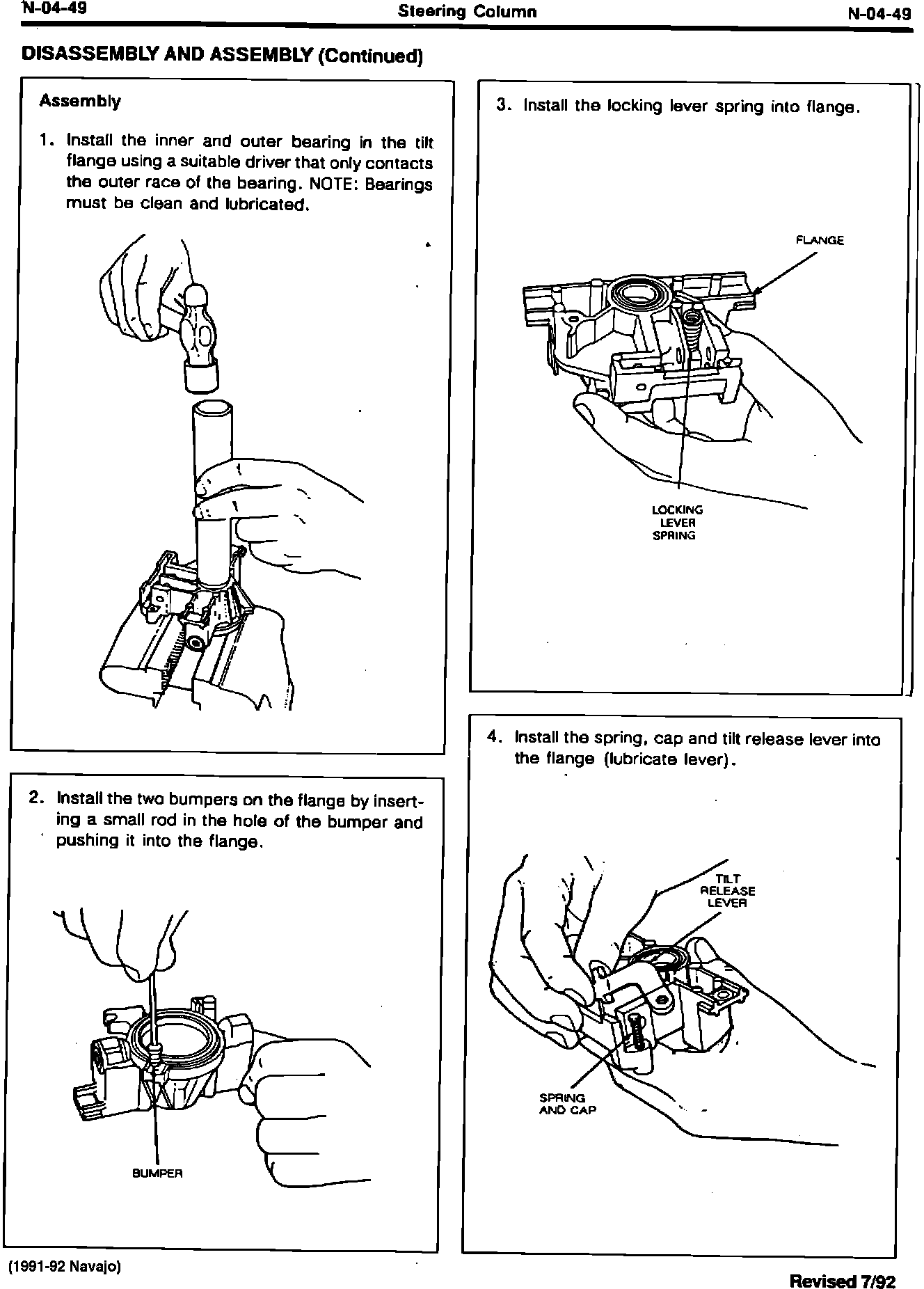

N-04-49

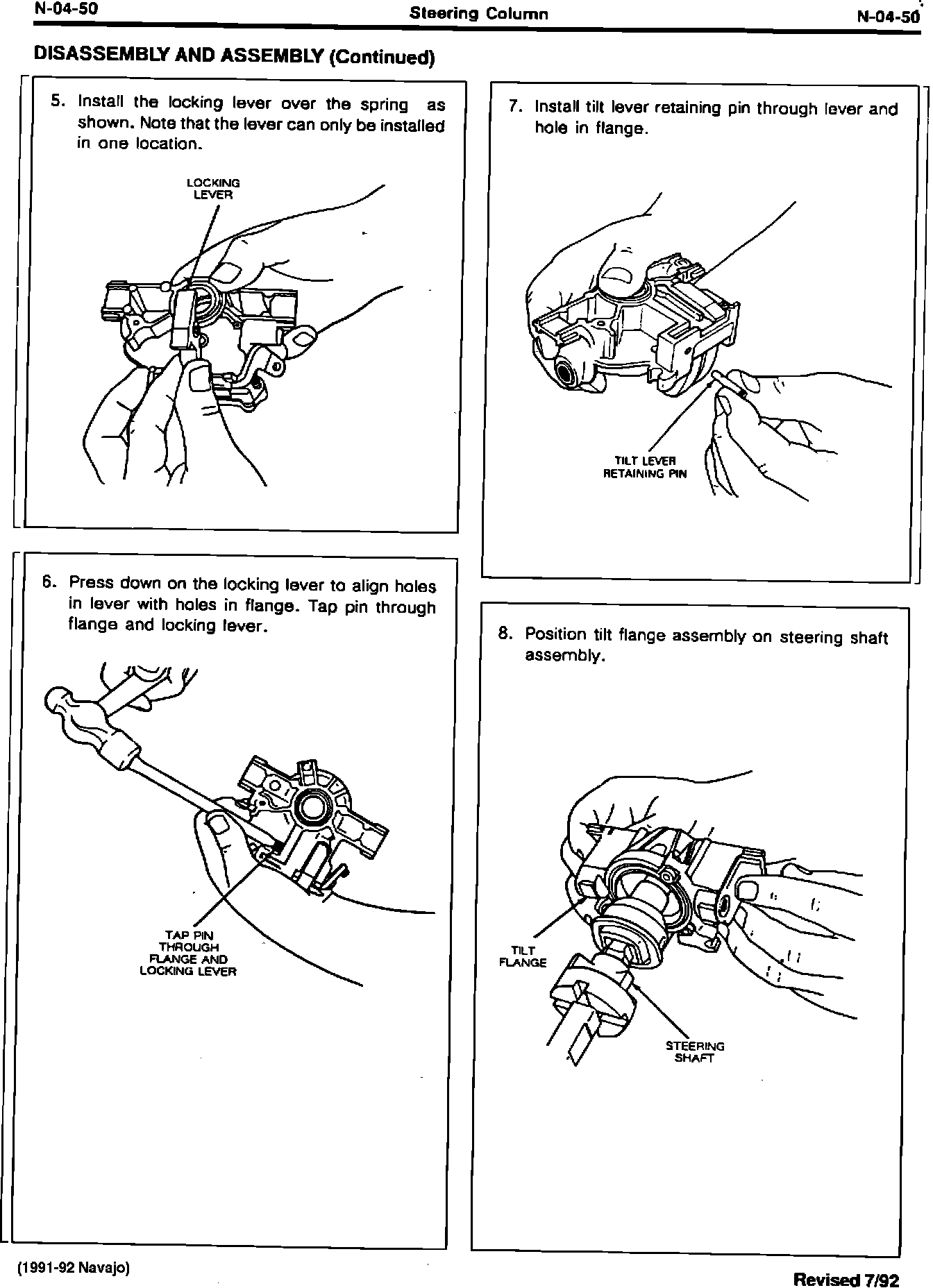

N-04-50
