Catalytic Converter: Service and Repair

Catalytic Converter R&R:

1. Remove in sequence shown.
2. Check all components for damage, deterioration, and restriction. Repair or replace as needed.
3. Install in reverse order of removal. Tighten all fasteners to specified torque.

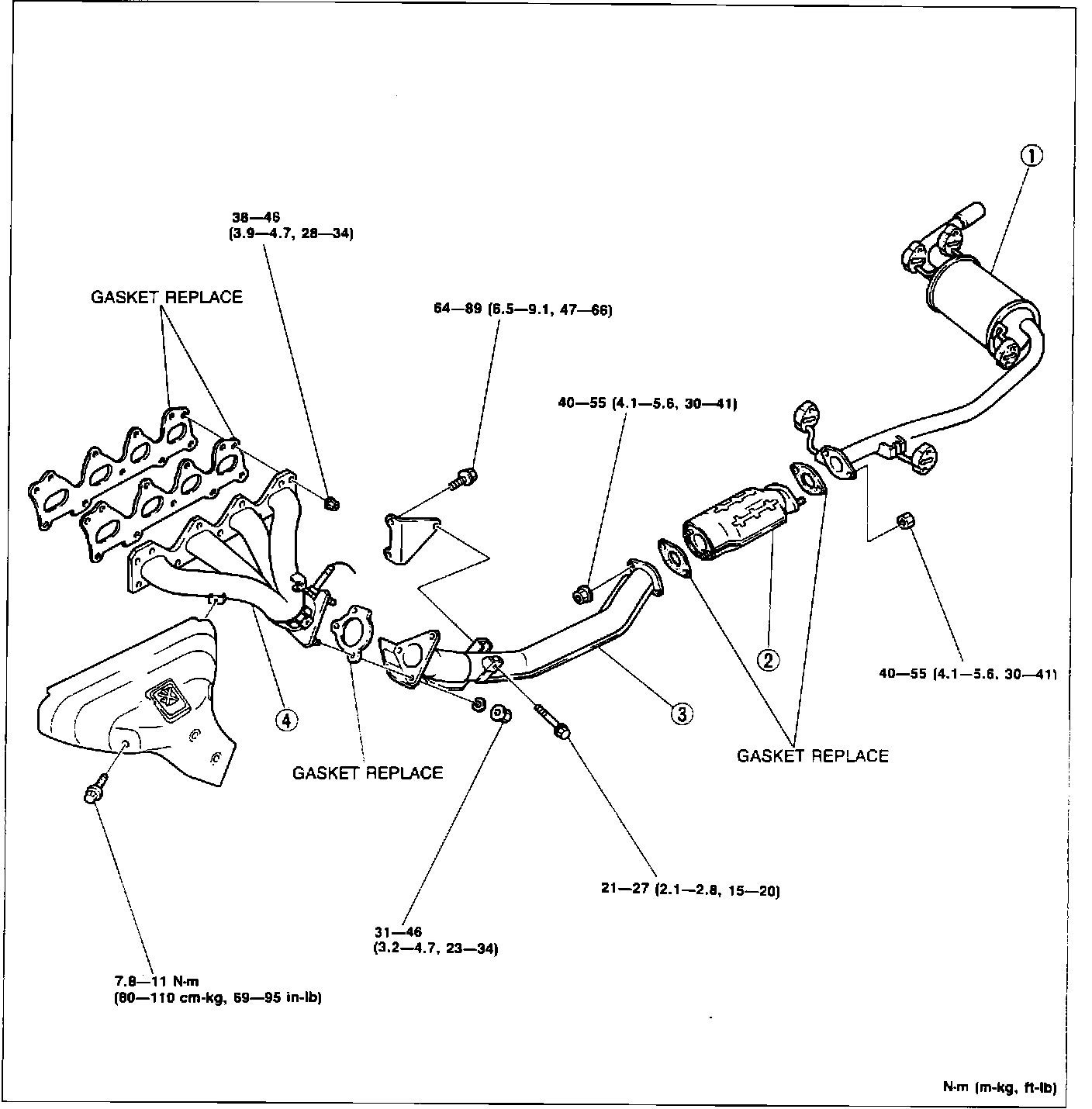

COMPONENTS

1. Main silencer.
2. Catalytic converter.
3. Front exhaust pipe.
4. Exhaust manifold.
