Charging System: Testing and Inspection

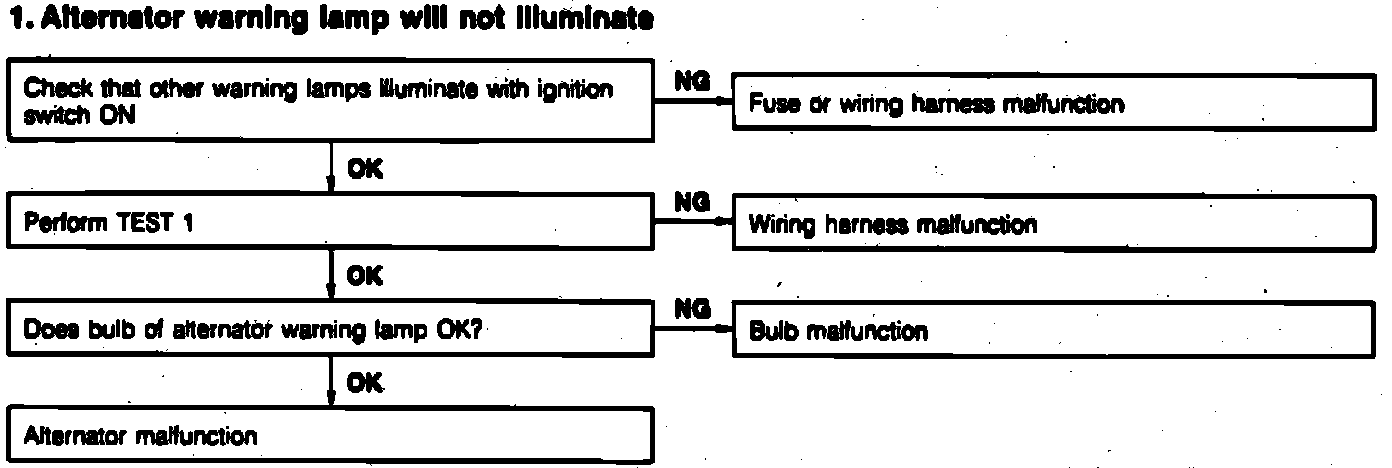

Fig. 13 Alternator Diagnosis (Part 1 Of 3).:

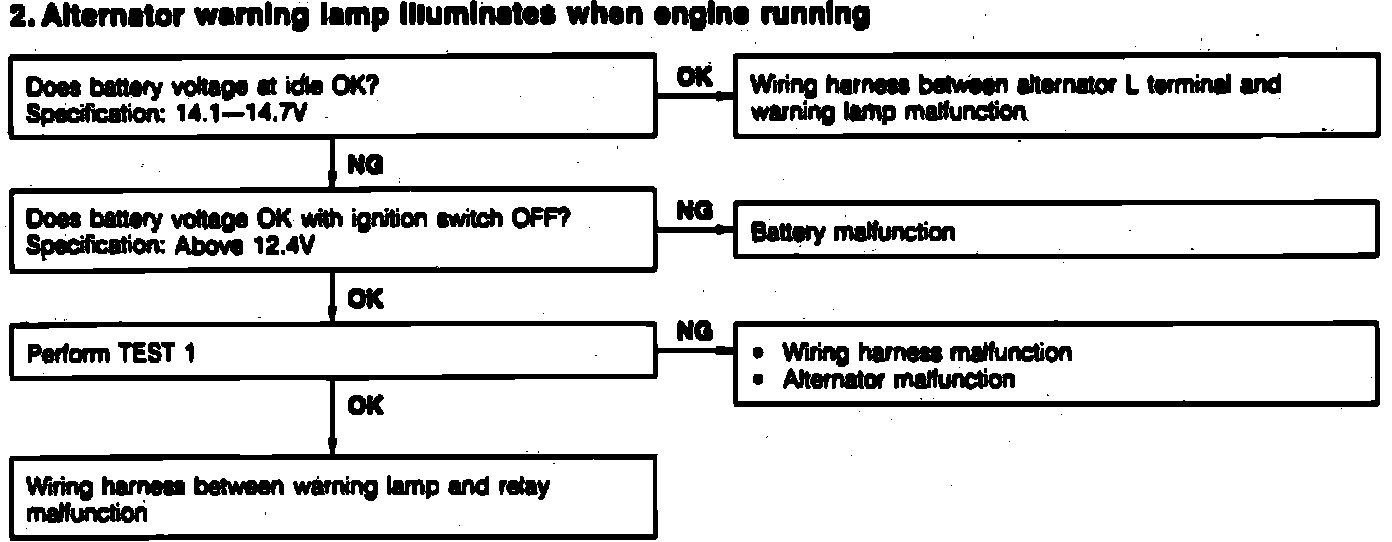

Fig. 13 Alternator Diagnosis (Part 2 Of 3).:
Fig. 13 Alternator Diagnosis (Part 3 Of 3).:

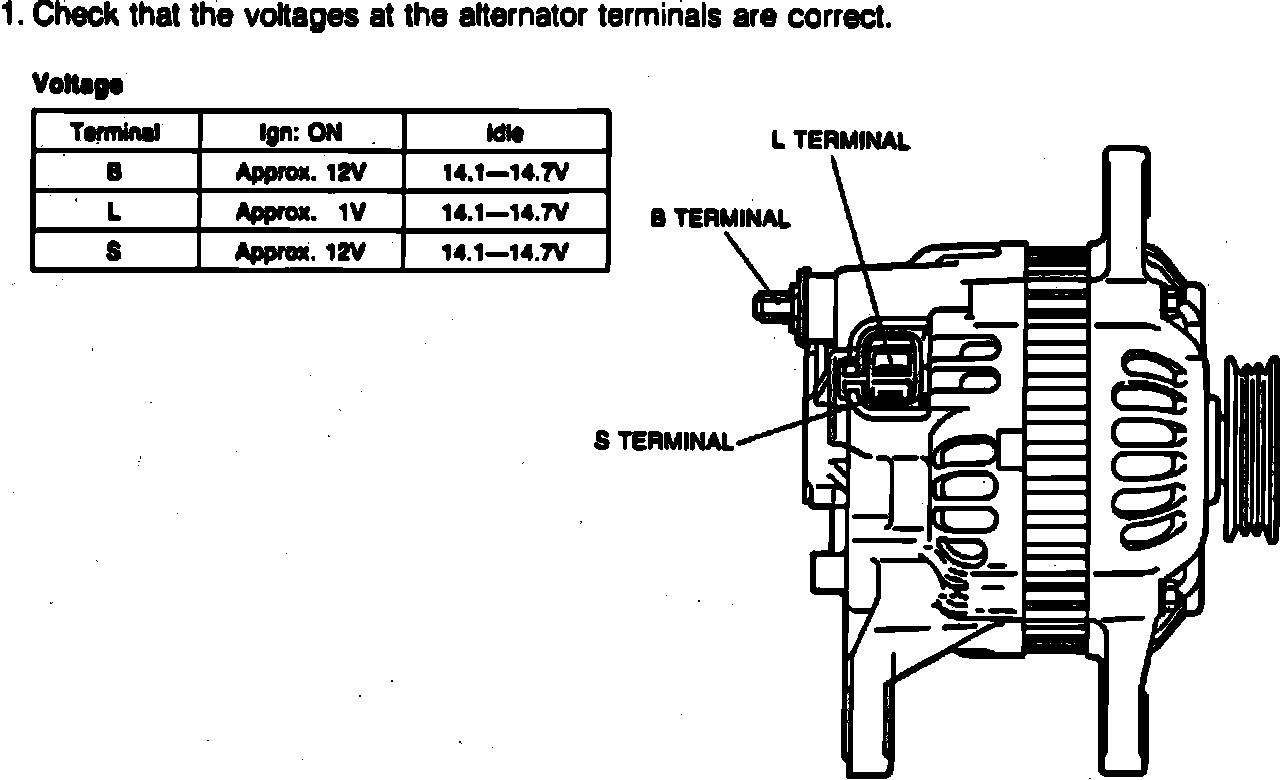

Fig. 14 Alternator Test No. 1.:
Fig. 15 Alternator Test No. 2.:
When diagnosing the
alternator, refer to
Figs. 13 through 15 for diagnosis and testing procedures.
