DF - Manifold Absolute Pressure/Barometric Pressure Sensor
>>
DF1 - Service Code 22/126: Check For Power to MAP/BP Sensor
DF1 - Service Code 22/126: Check For Power to MAP/BP Sensor

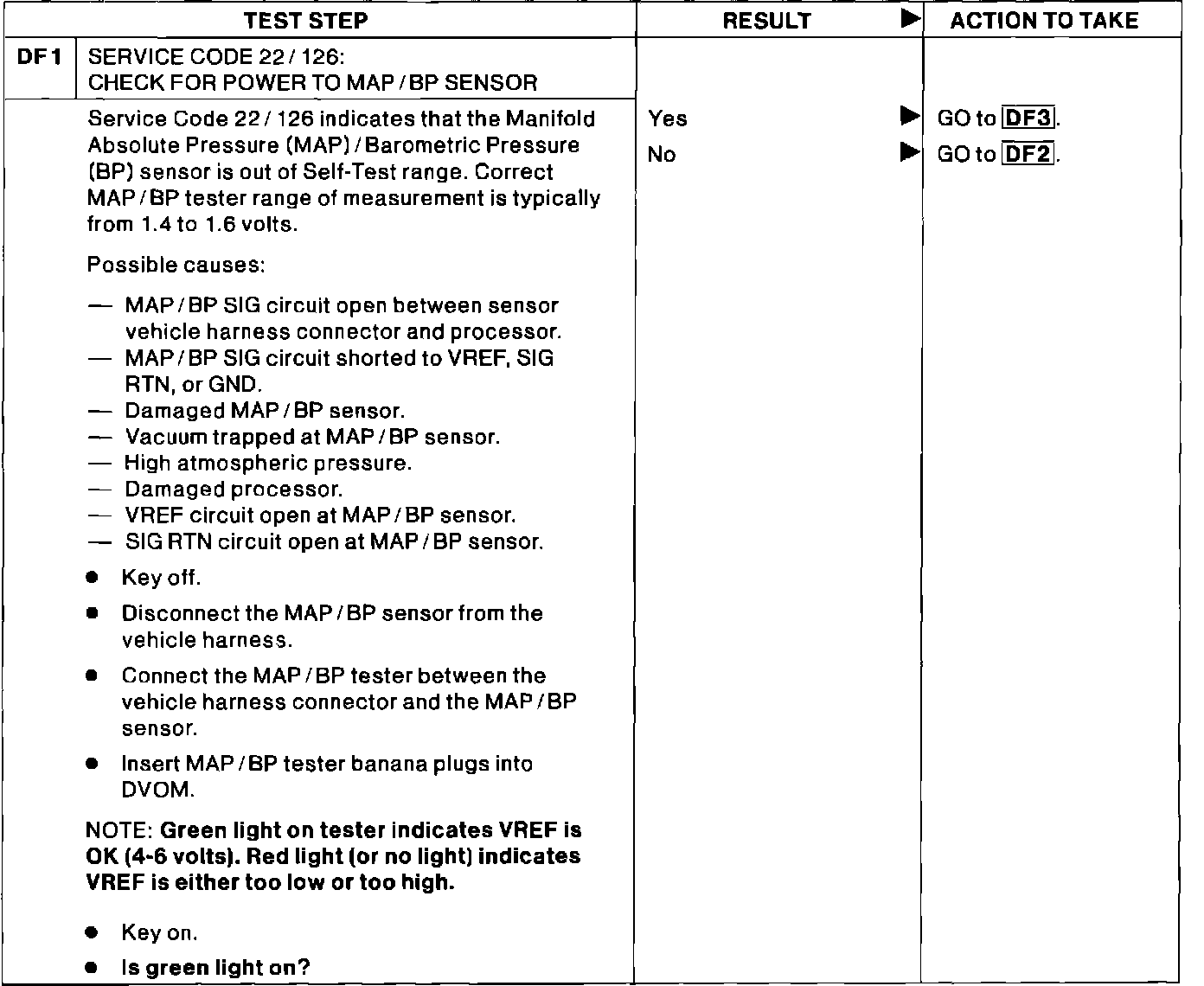

Pinpoint Test DF1:
