DF - Manifold Absolute Pressure/Barometric Pressure Sensor
>>
DF8 - Check MAP Sensor Operation
DF8 - Check MAP Sensor Operation

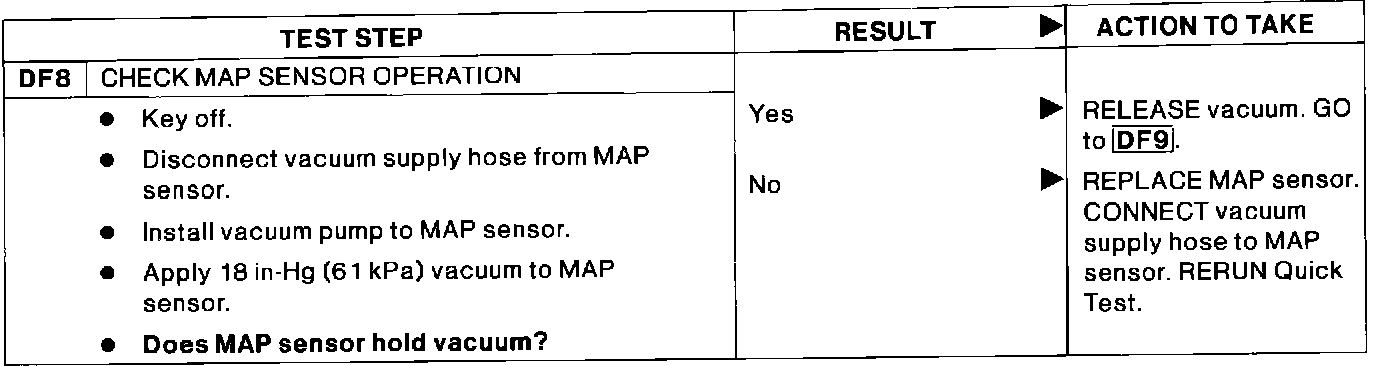

Pinpoint Test DF8:
