DH - Throttle Position (TP) Sensor
>>
DH21 - Check TP Sensor Movement During Dynamic Test
DH21 - Check TP Sensor Movement During Dynamic Test

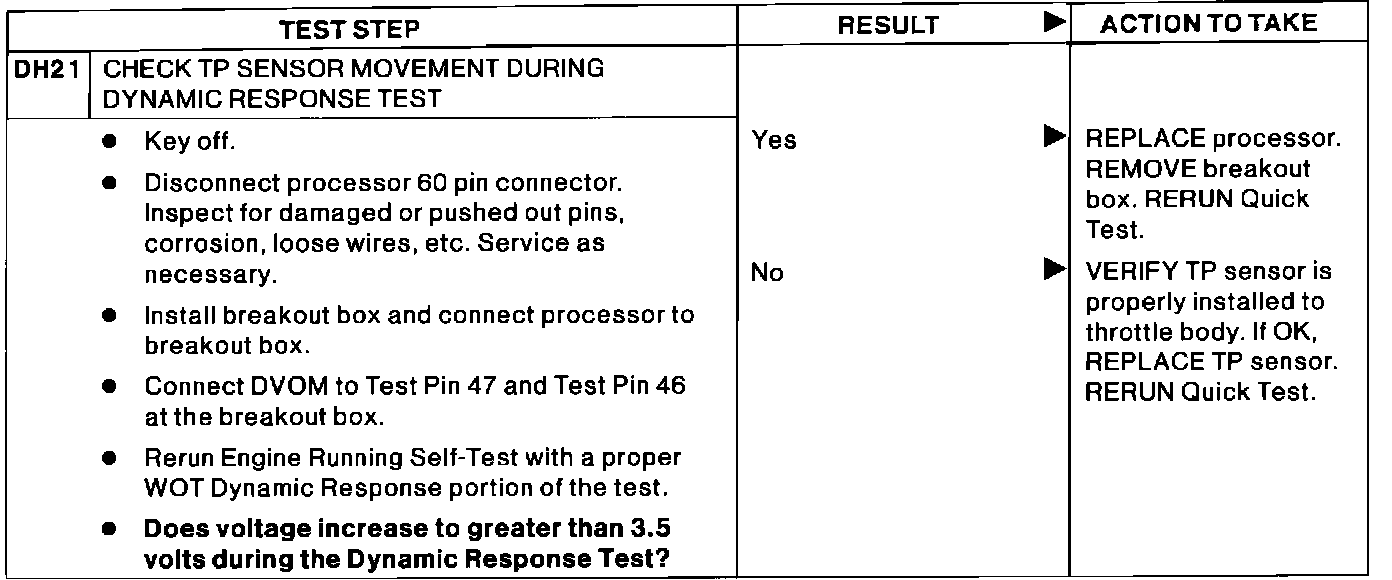

Pinpoint Test DH21:
