Fluid - M/T: Service and Repair

TRANSAXLE OIL REPLACEMENT
1. Disconnect the speedometer cable and remove the speedometer driven gear.

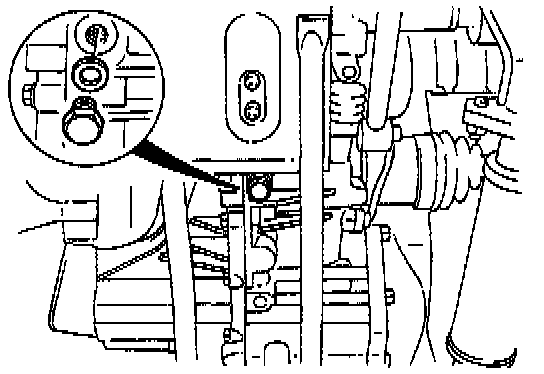

2. Remove the drain plug and washer. Drain the oil into a suitable container.
3. Install a new washer and the drain plug.

Tightening torque:
39-59 N.m (4.0-6.0 m-kg, 29-43 ft-lb)

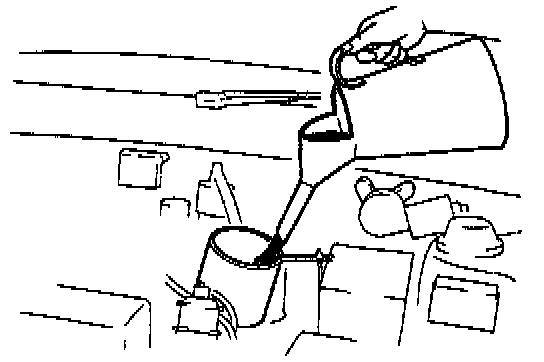

4. Add the necessary amount of the specified oil through the speedometer driven gear mounting.

Specified Oil Viscosity:
All Season:
ATF: DEXRON-II, M2C33-F; or SAE 75W-90
Above -18°C (0°F)
API service GL-4 SAE 8OW-90

Capacity: 3.35 liters (3.55 US qt, 2.96 Imp qt)

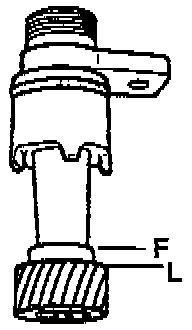

5. Verify the oil level.





6. Install the speedometer driven gear and connect the speedometer cable.
