Installation




1. Raise the vehicle and support it with safety stands.

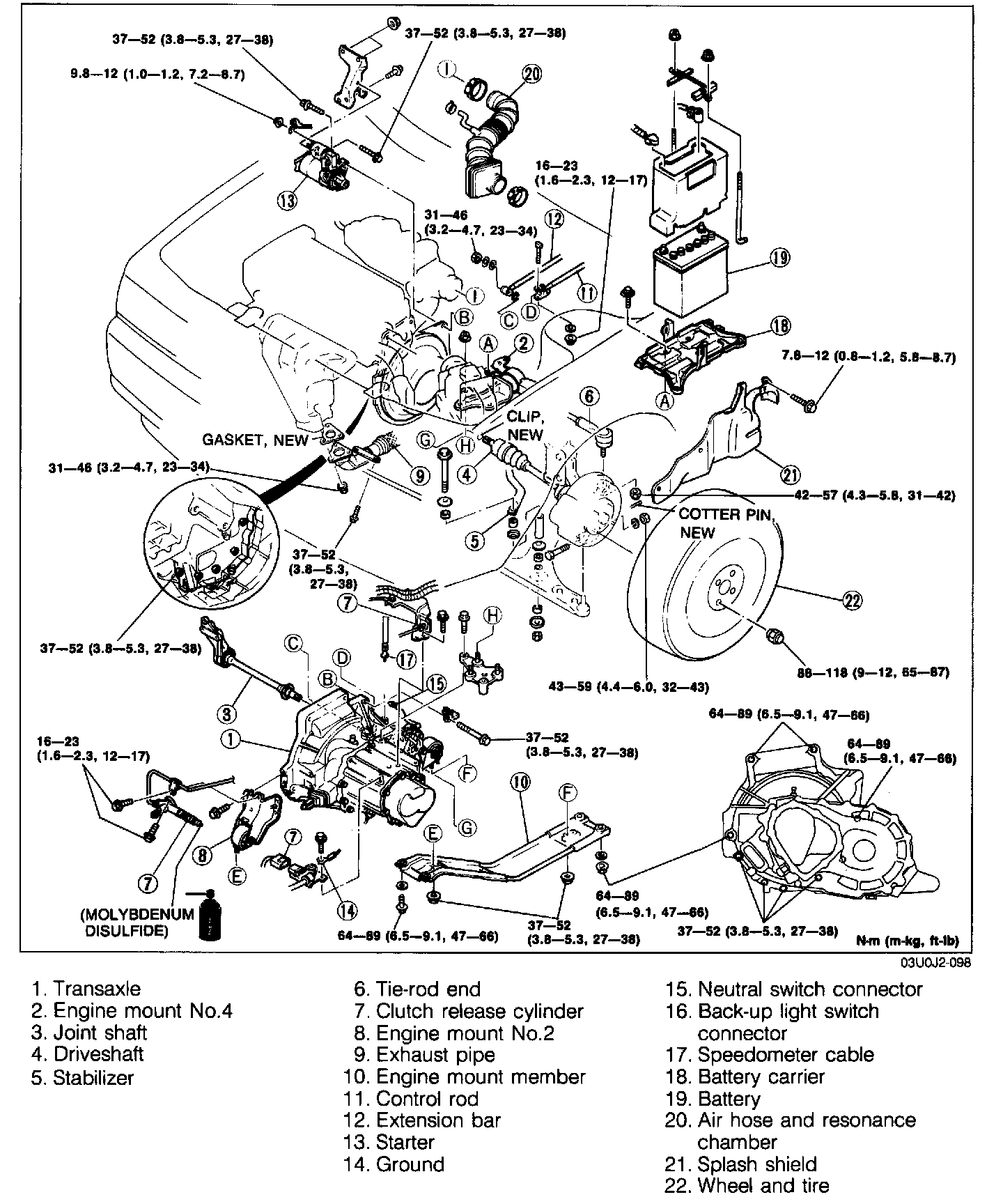

2. Install in the order shown in the image, referring to Installation Note.
3. Fill the transaxle with the specified amount of the specified transaxle oil after installation.
4. Warm up the engine and transaxle, and inspect for oil leakage and transaxle operation.




Installation Note
Driveshaft

CAUTION: Do not damage the new oil seal.

1. Install the driveshaft with the end-gap of the new clip facing upward.




Stabilizer
1. Tighten the nut until the specified amount of thread is exposed at the end of the bolt.

Dimension (A): 17 - 19 mm (0.67 - 0.75 in.)
