Lighting and Horns: Testing and Inspection

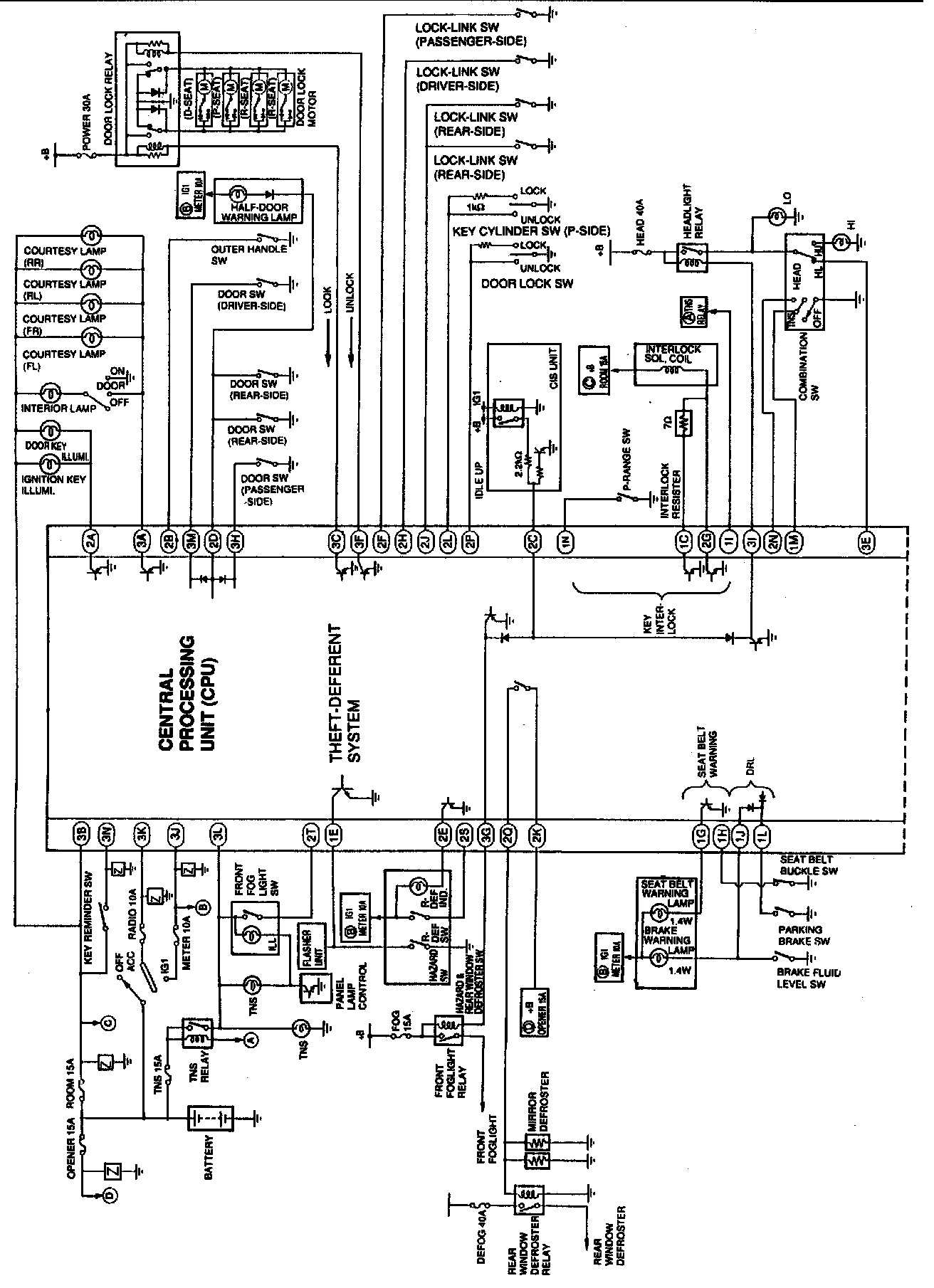

SYSTEM DIAGRAM

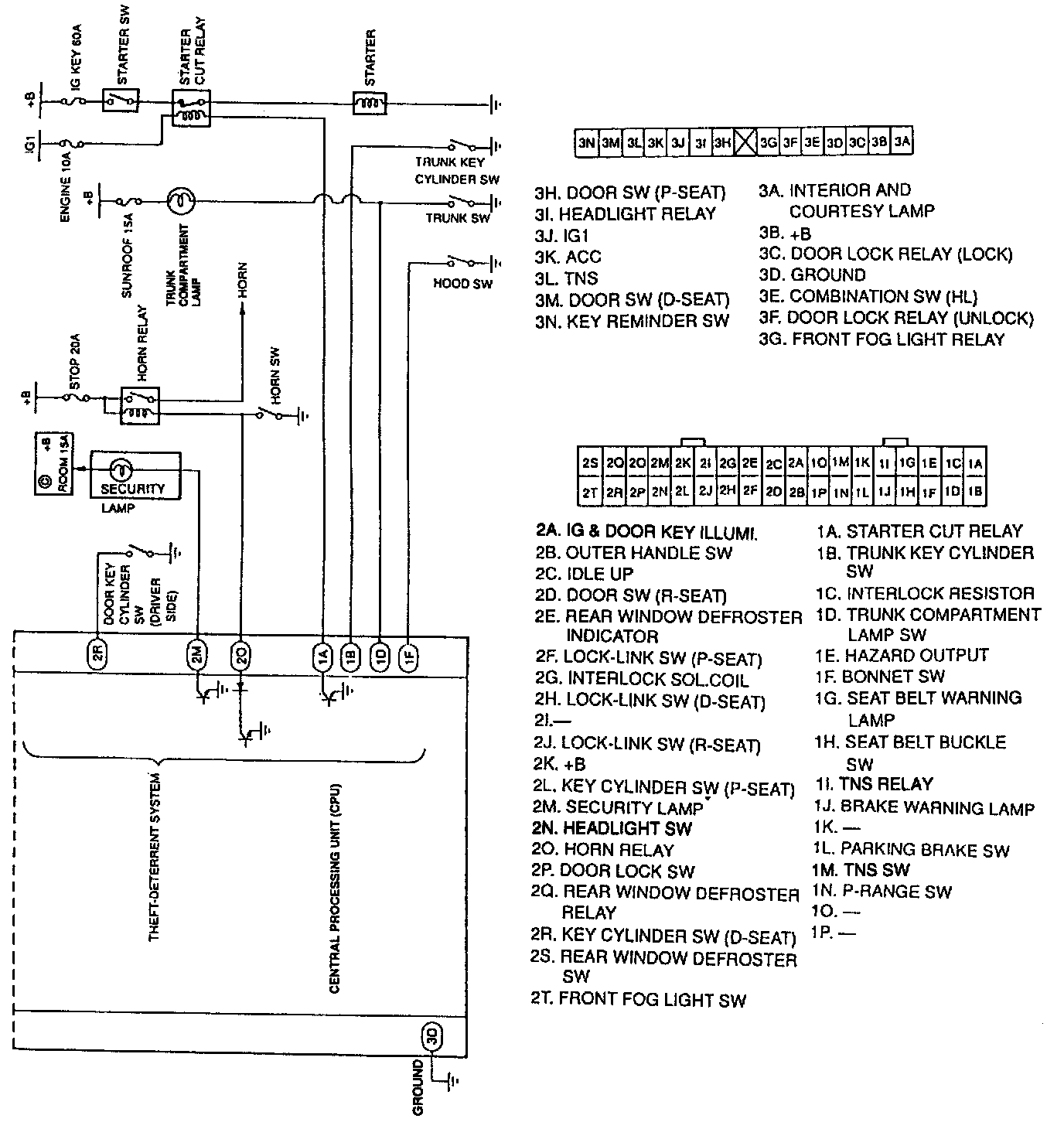

CONNECTOR PIN OUT

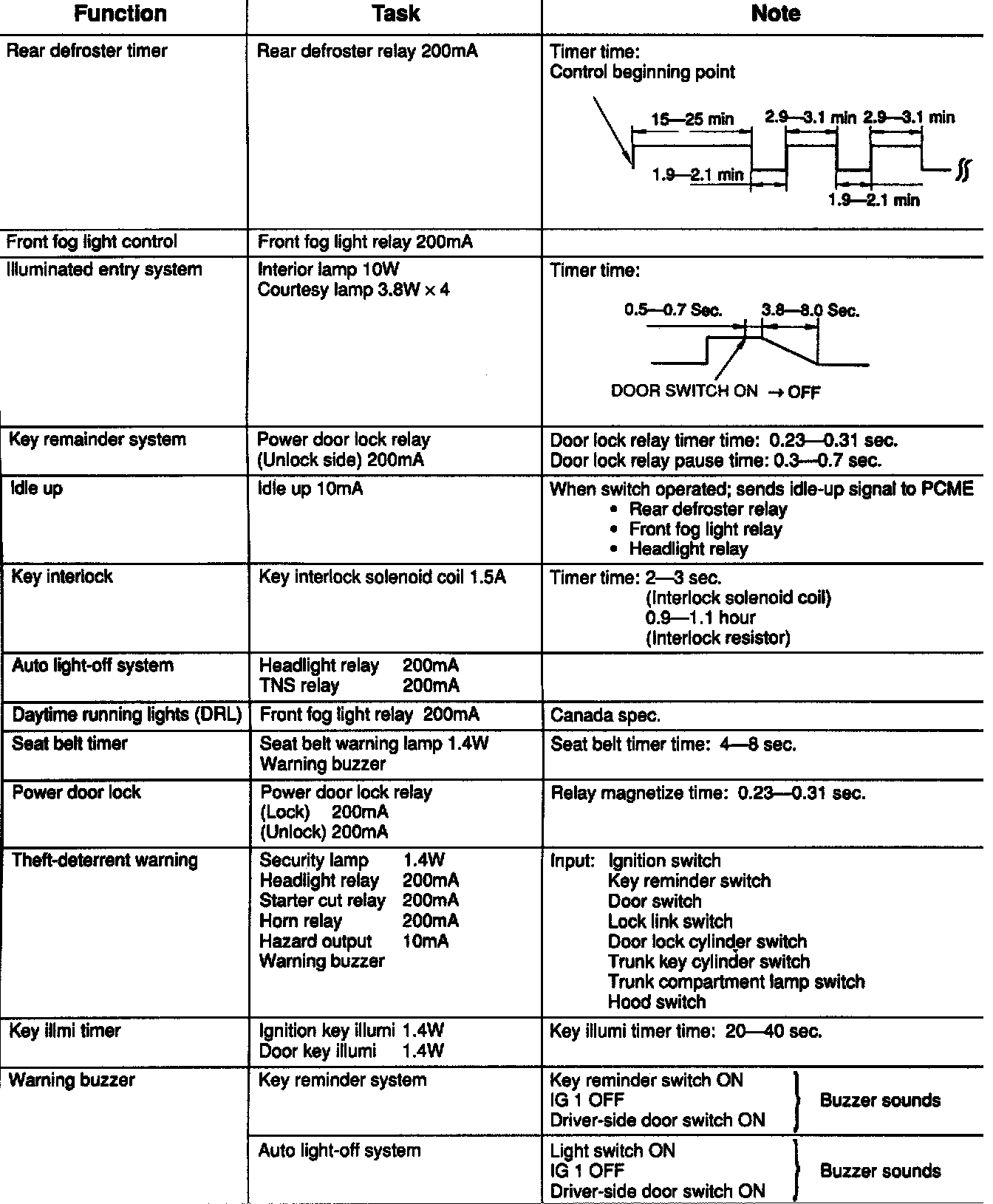

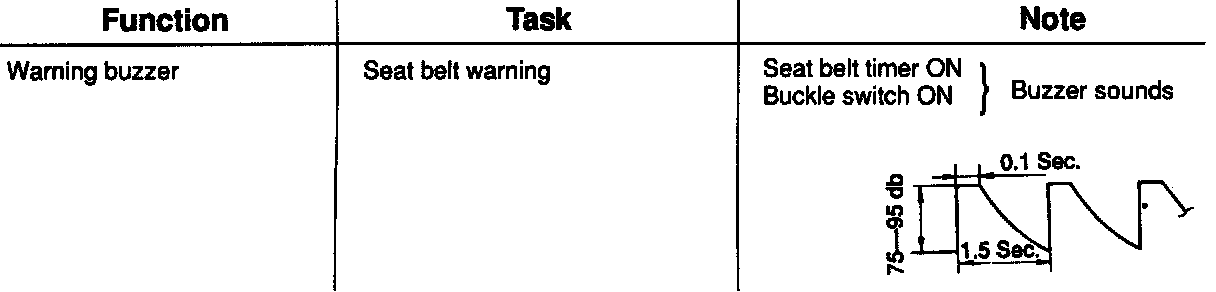

SPECIFICATIONS

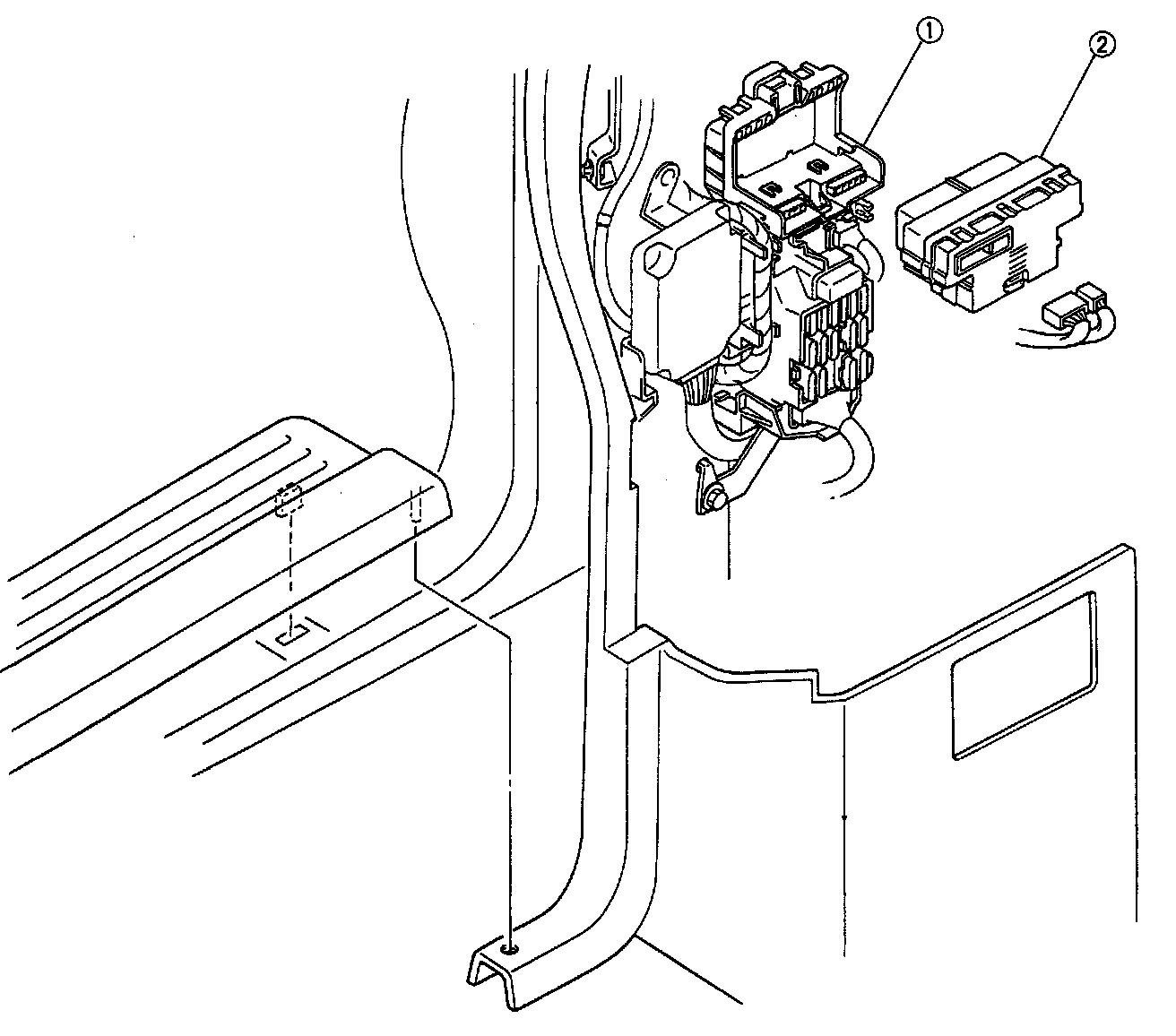

LOCATION

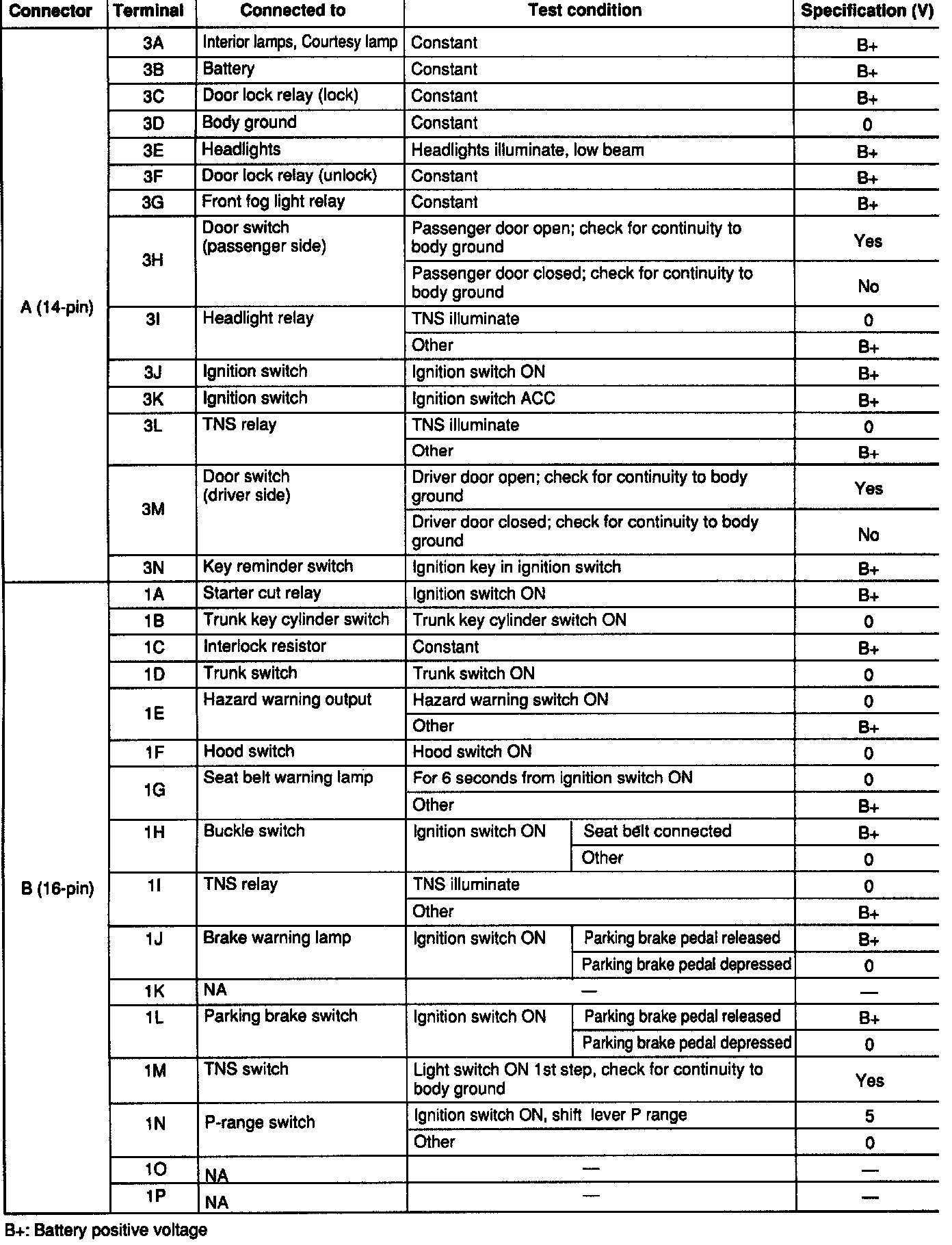

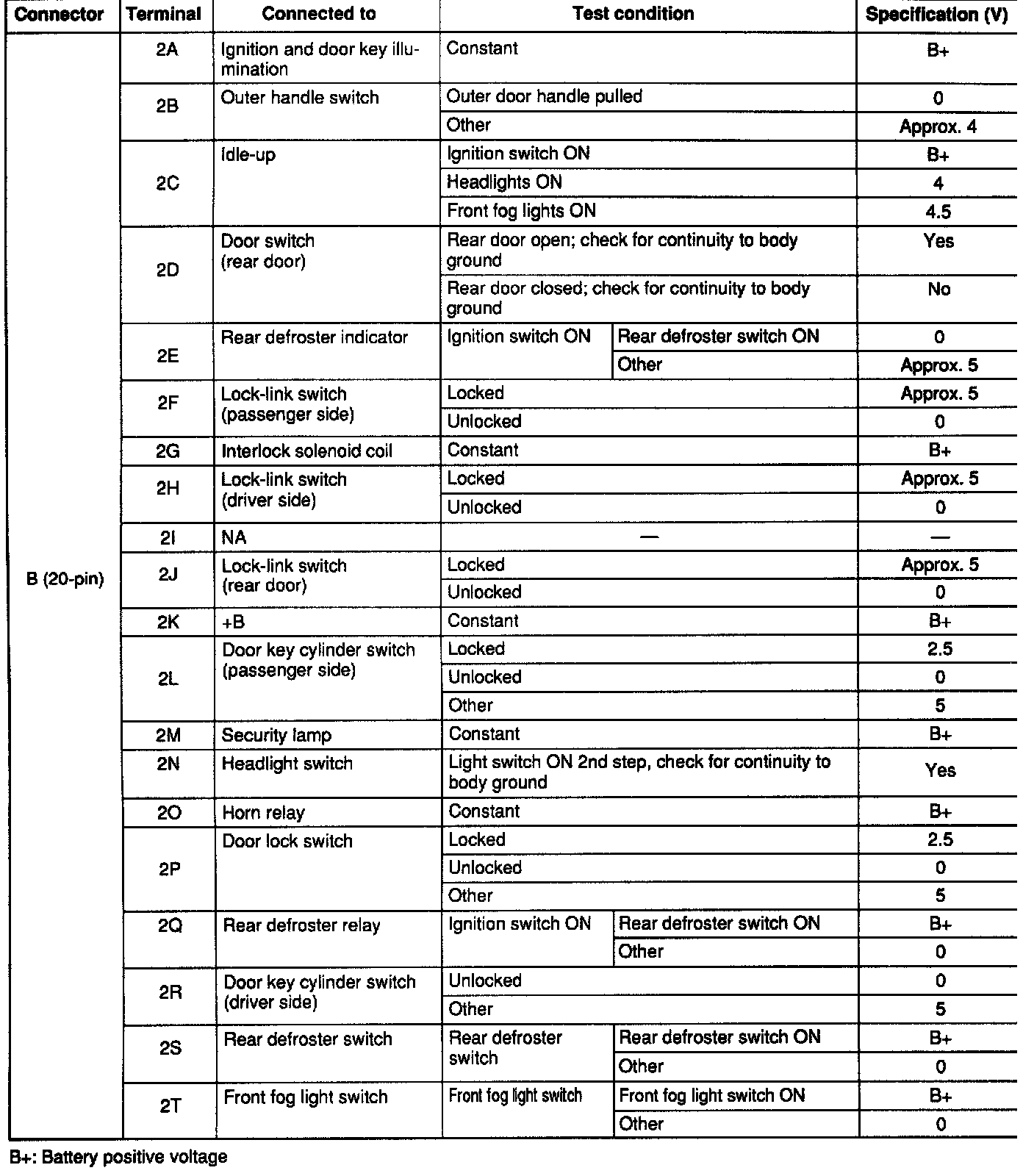

TERMINAL VOLTAGE LIST
