Switch Monitor Function

Switch Monitor Function:

^ The PCM Switch Monitor Function permits checking individual switches with the Mazda Self-Diagnosis Checker (SST #49 H018 9A1) or a compatible aftermarket "Scan" tool.

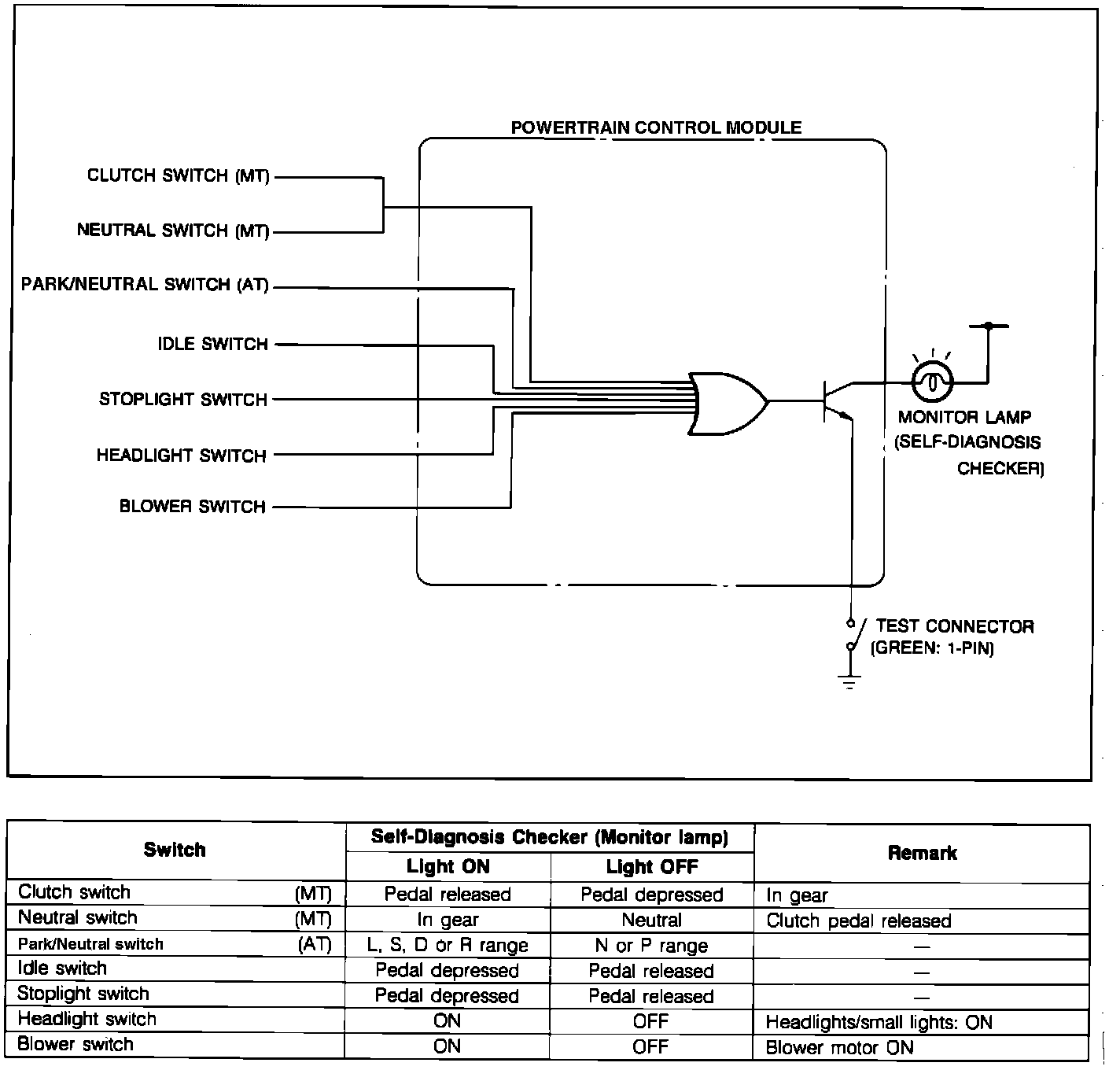

^ With ignition switch "ON" and test connector grounded, the tool checks switches as indicated on the image chart.
^ Consult aftermarket "Scan" tool instructions for proper use of this function.
