Control Module: Testing and Inspection



1. Turn ignition switch "ON." Check EC-AT control unit terminal voltages, referring to Terminal Voltage Chart.
2. If not correct, repair or replace defective component(s), wiring and/or EC-AT control unit.

TERMINAL VOLTAGE CHART

PART 1

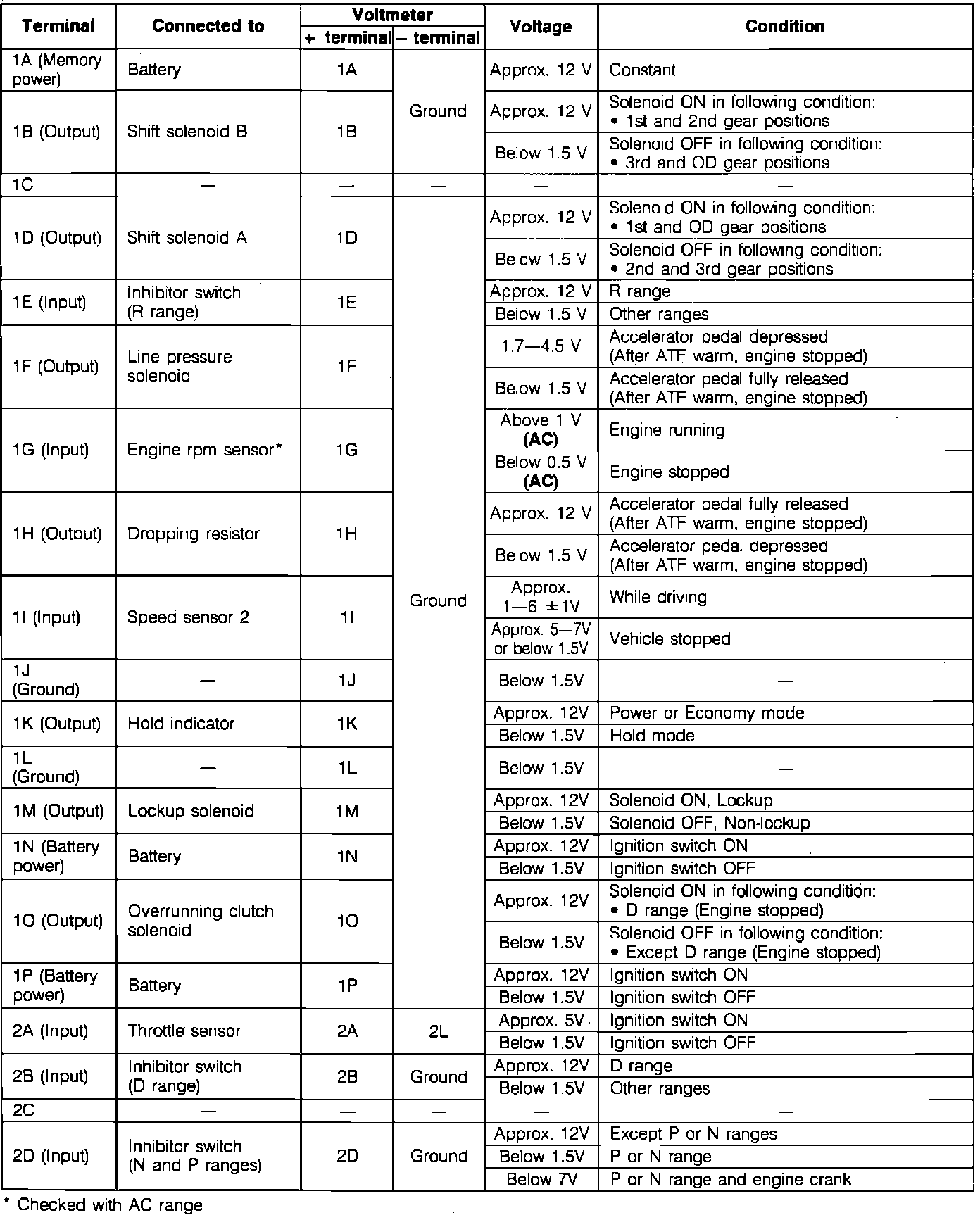

Terminal Voltage Chart (Part 1):






PART 2

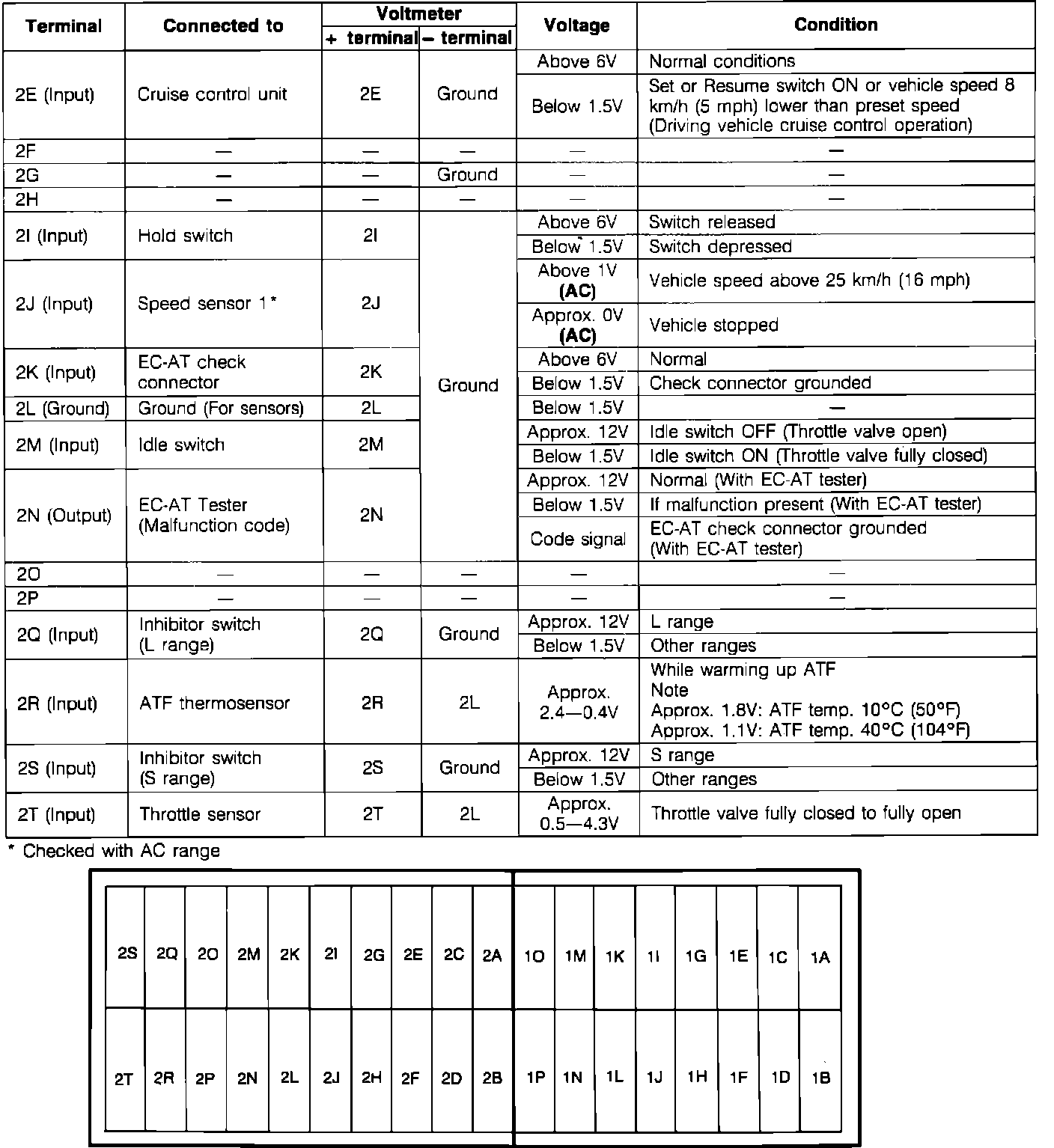

Terminal Voltage Chart (Part 2):
