Blower Motor Resistor: Testing and Inspection

Resistor Inspection

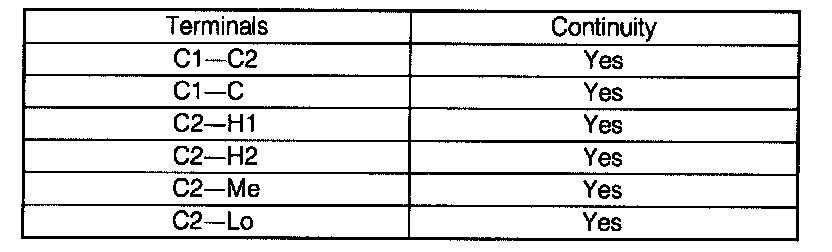

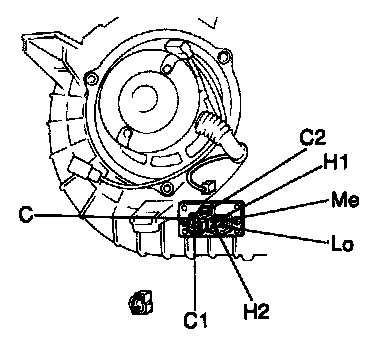

- Check for continuity between terminals of the resistor assembly.

Note: Set the ohmmeter to the x1,000 range.

- If not as specified, replace the resistor assembly.
