Federal

EGR Function Sensor Testing:

NOTE: Make this check with engine cold.

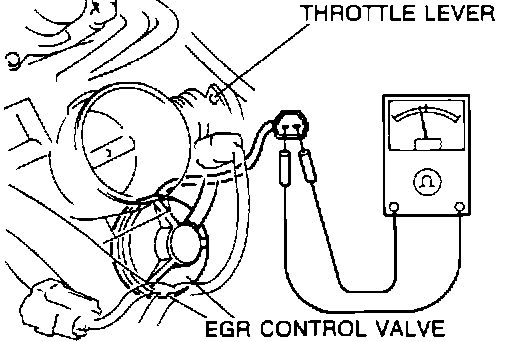

1. Unplug sensor connector and measure resistance:

RESISTANCE @ 68°F (20°C): 182 - 336K Ohms

2. If not as specified, replace EGR valve assembly.
