Automatic Transaxle
TWC R&R:
1.

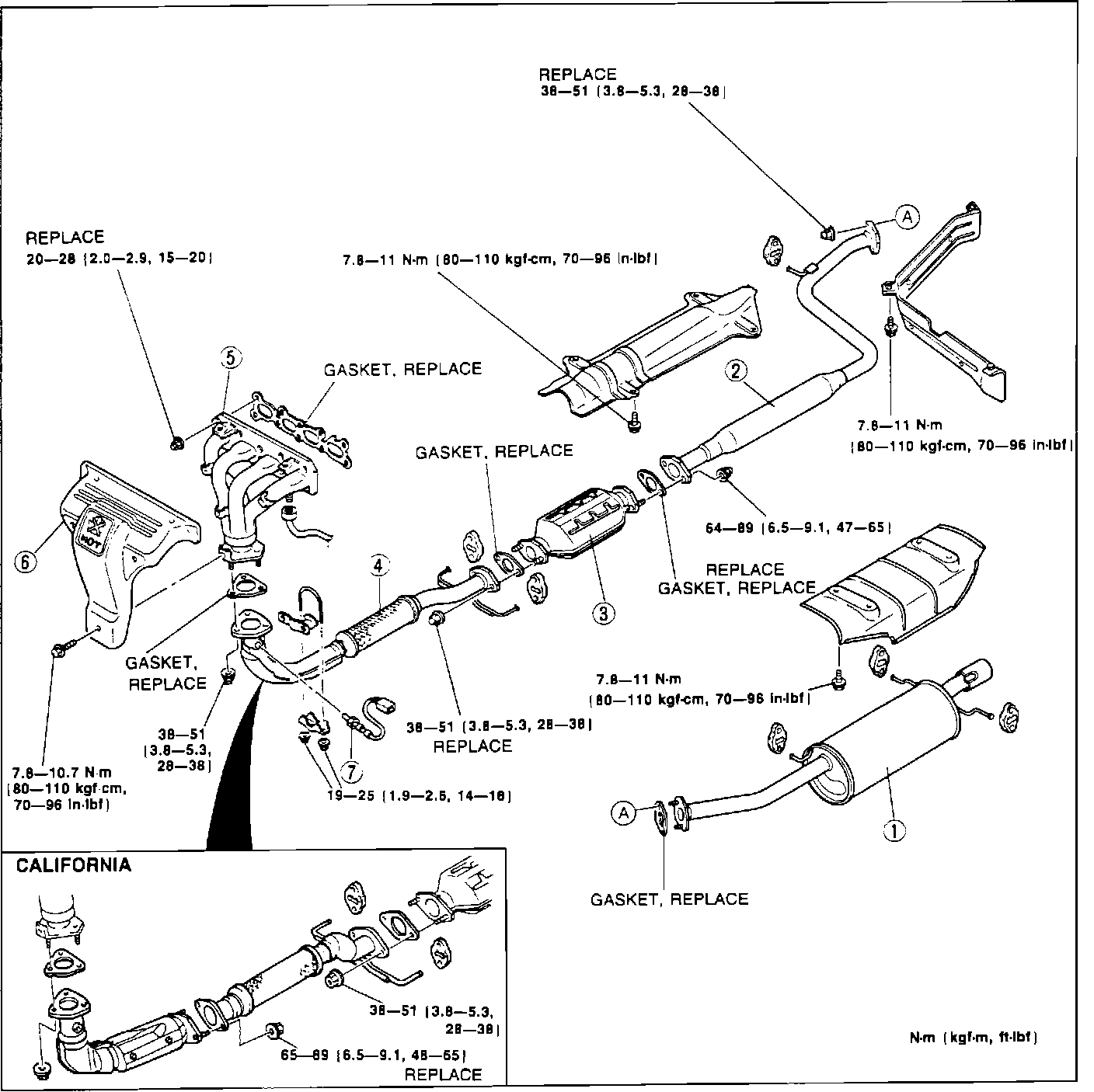

Remove in order shown on image.
2.
Inspect all parts and repair or replace as needed.
3.
Assemble in reverse order of removal.
COMPONENTS1.
Main silencer
2.
Pre-silencer
3.
Three-way catalyst
4.
Front pipe assembly
5.
Warm-Up three-way catalyst (California)
6.
Exhaust manifold7.
Exhaust manifold insulator
8.
Heated oxygen sensor
