With Automatic Transaxle (ATX)

Distributor R&R:






1. Remove in order shown.
2. Install in reverse order, referring to INSTALLATION NOTE.

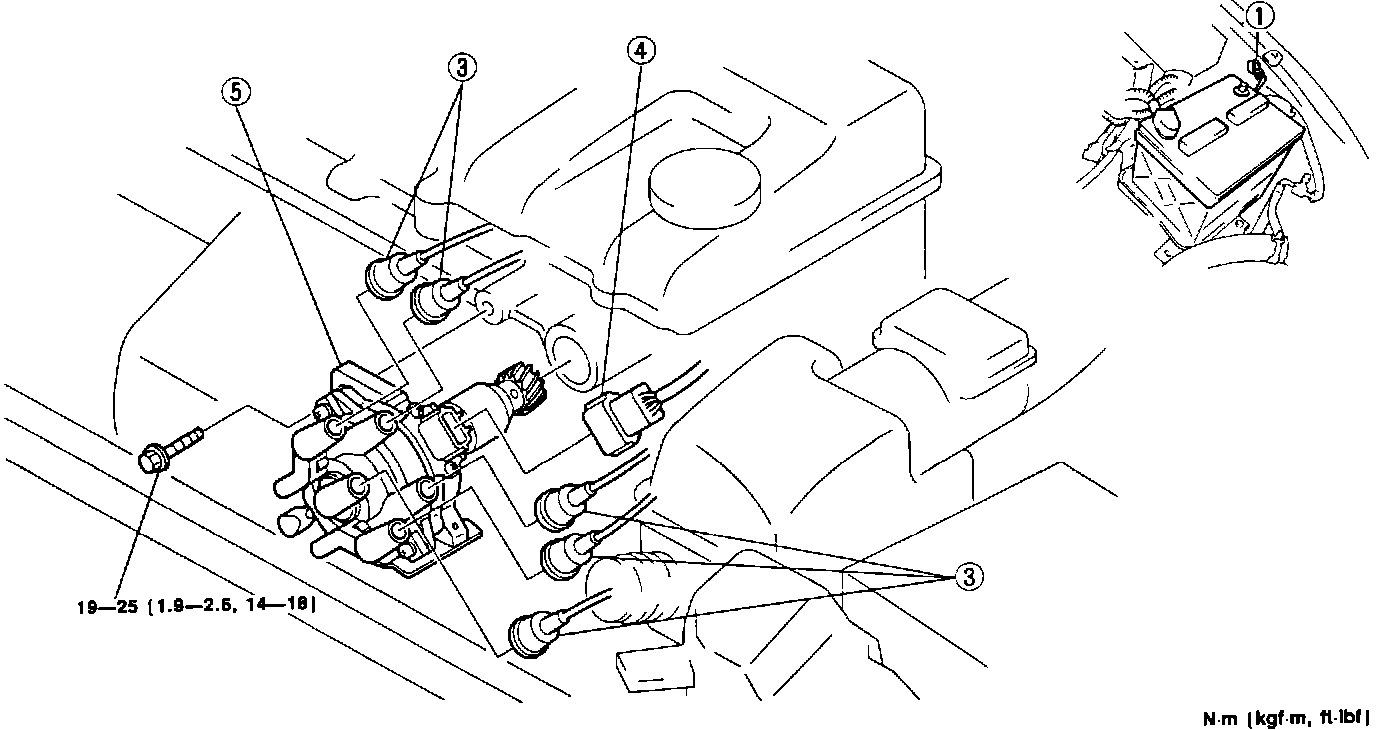

COMPONENTS

1. Battery cable.
2. Fresh air duct.
3. Air cleaner housing.
4. High-tension lead.
5. Connector.
6. Distributor.

INSTALLATION NOTE

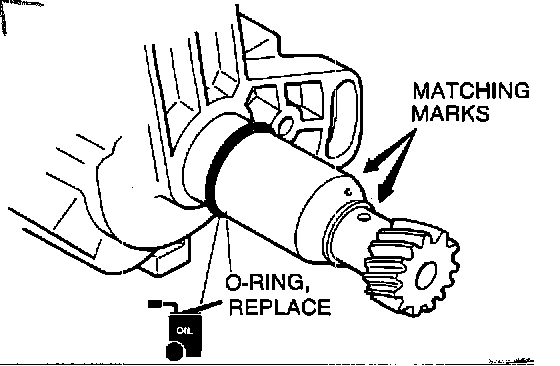

Distributor Matching Marks:






1. Verify that engine is at #1 TDC and align distributor matching marks as shown.
2. After installing distributor, adjust ignition timing.
3. Tighten hold-down bolt to 14 - 18 ft lb (19 - 25 Nm).
