Starter Motor: Service and Repair

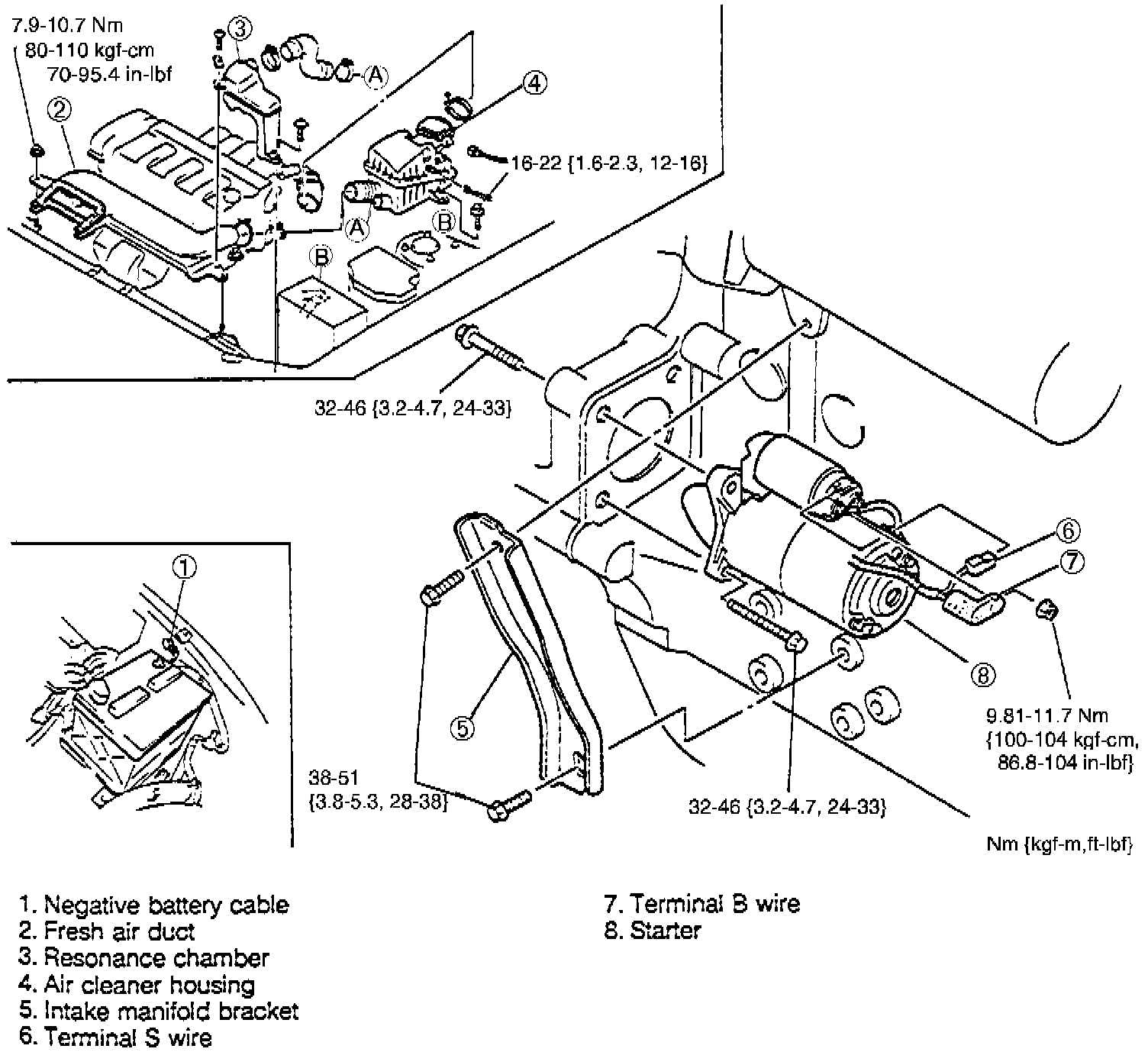

Fig. 2 Starter Removal:
NOTE: Deactivate audio anti-theft function, as outlined under
Technician Safety Information before disconnecting battery.
1.
Disconnect battery ground cable.
2.
Remove or disconnect components in order,
Fig. 2. 3.
Reverse procedure to install.
4.
Reactivate audio anti-theft function as outlined under
Technician Safety Information.
