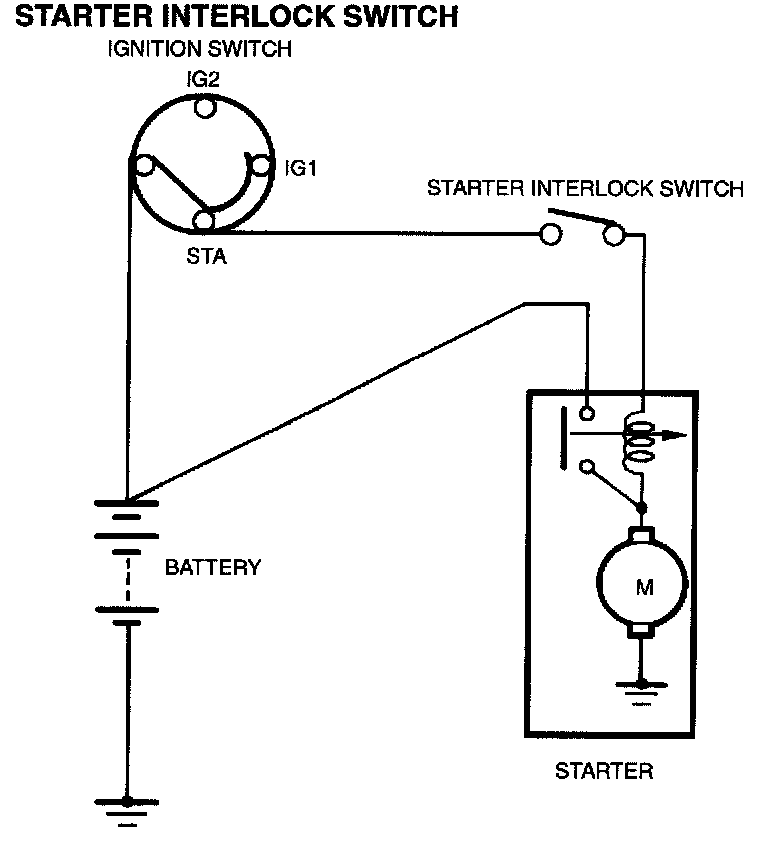

Starter Interlock Switch
This system is similar to that of the transaxle range switch on an ATX vehicle. If the clutch pedal is not depressed during starting, battery power will not be supplied to the starter and it will not operate.
Inspection 1.
Disconnect the starter interlock switch connector.
2.

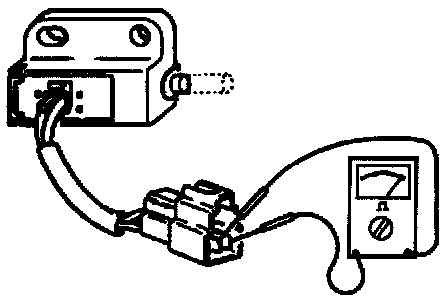

Connect a circuit tester to the switch.
3.
Check the continuity.
4.
Replace the switch if necessary.
