Crankshaft Position Sensor 2

Crankshaft Position Sensor 2 R&R:

1. Disconnect negative battery cable.

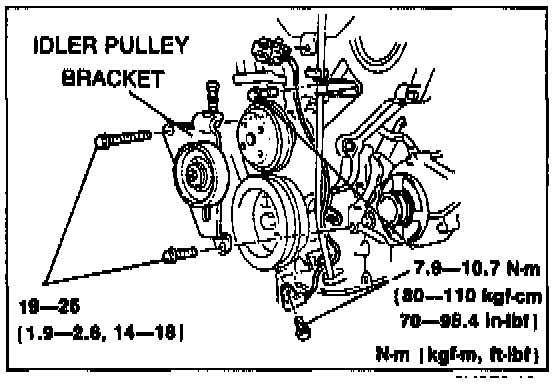

2. Remove idler pulley bracket.
3. Remove dipstick pipe.
4. Remove sensor.
5. Install in reverse order.
6. Adjust drive belt tension.
