Federal
TWC R&R:
1.

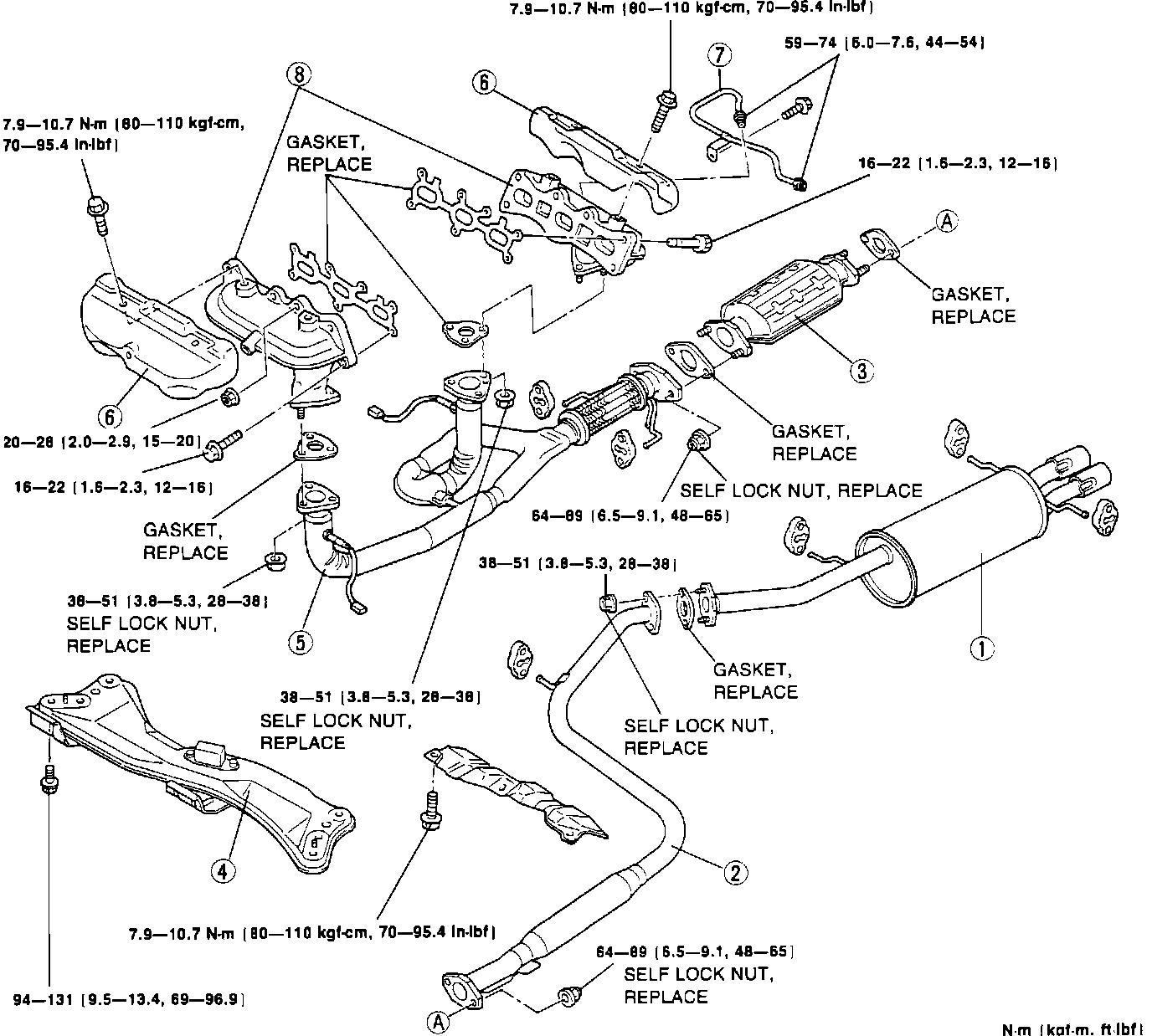

Remove in order shown on image.
2.
Inspect all parts and repair or replace as needed.
3.
Assemble in reverse order of removal.
COMPONENTS1.
Main Silencer (
Muffler)
2.
Pre-Silencer
3.
Three-Way Catalyst
4.
Transverse Member
5.
Front Pipe
6.
Insulator
7.
EGR Pipe
8.
Exhaust Manifold
