Diagnostic Trouble Code Interpretation
1. Note test light flash pattern when equipment is connected as described under Accessing Diagnostic Trouble Codes.2. If condition detection mode was used, refer to Fig. 8 for flash pattern interpretation, diagnostic trouble code causes and corrective actions.

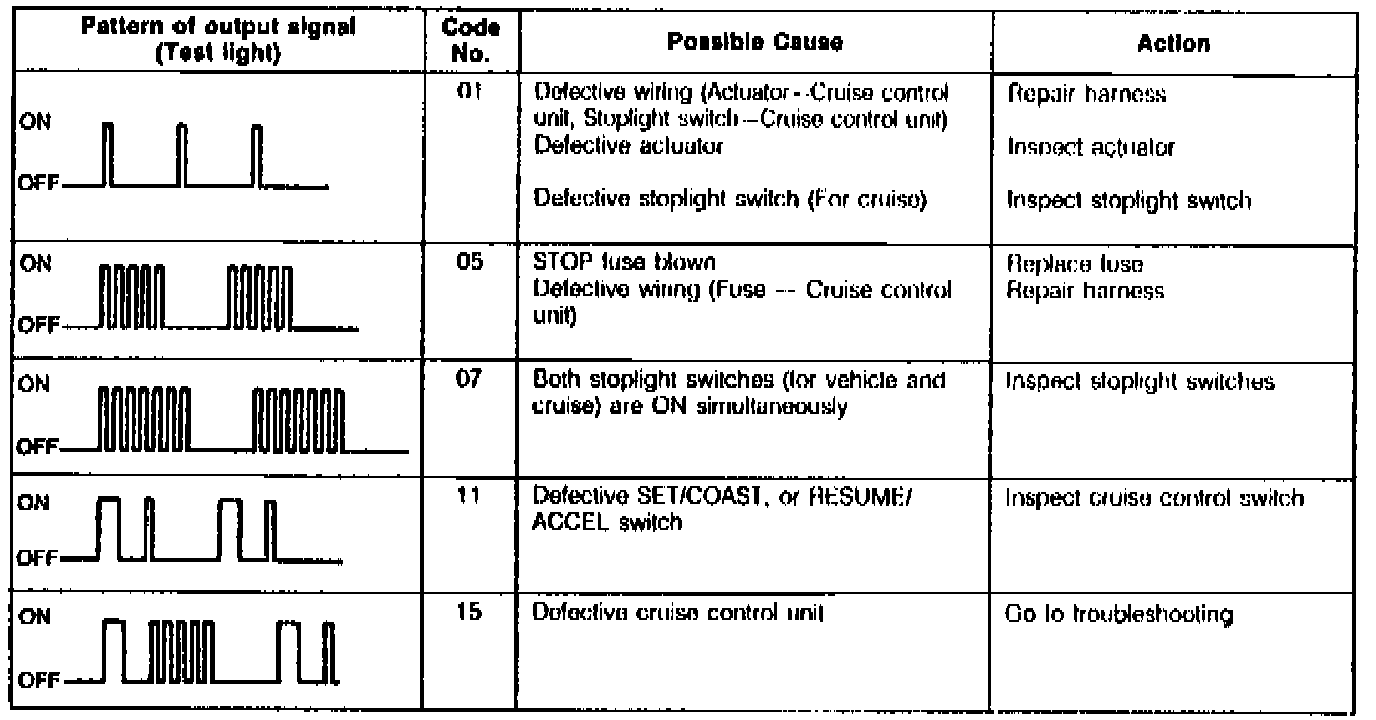

Fig. 8 Condition Detection Mode Diagnostic Trouble Code Interpretation:
3. If operation mode was used, refer to Fig. 9 for normal operation indications, deviation causes and corrections.

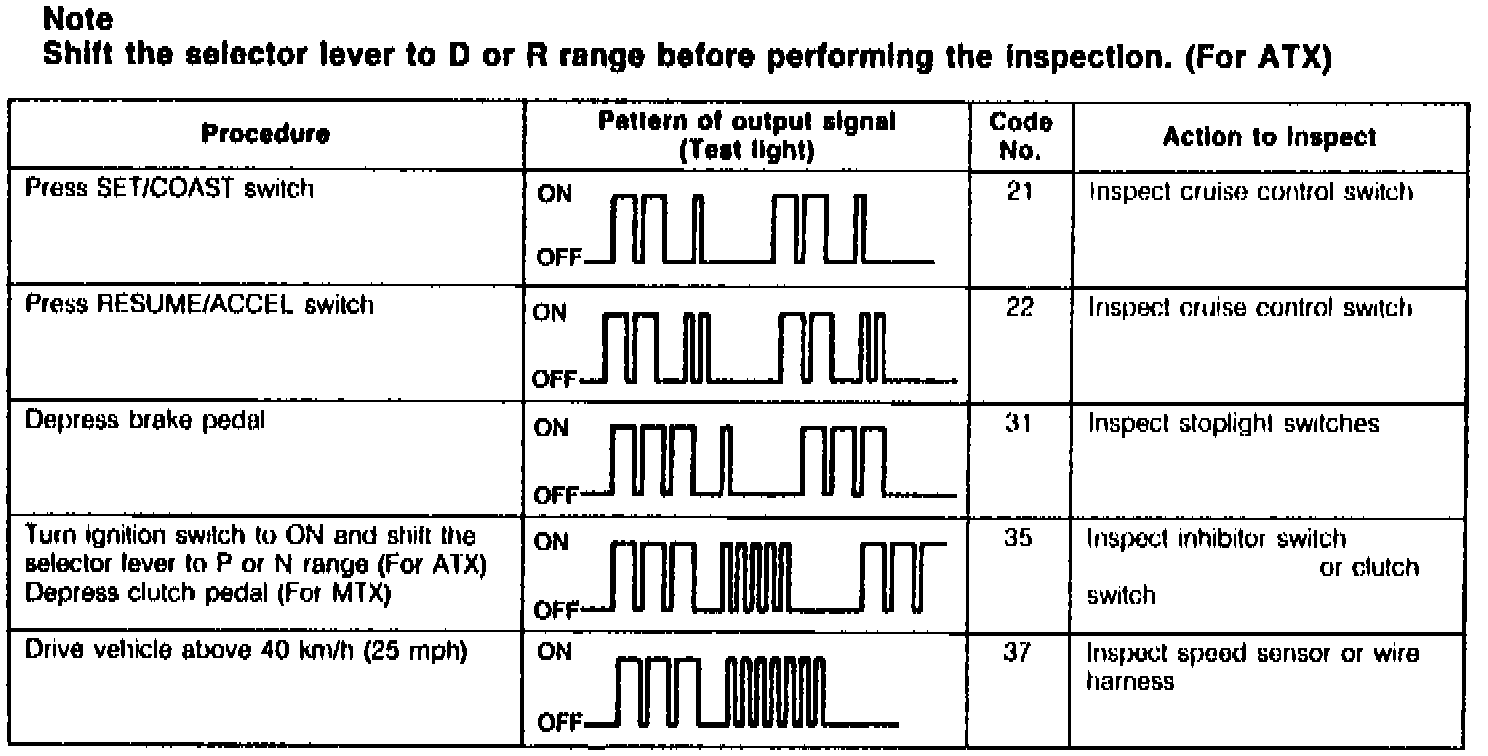

Fig. 9 Normal Operation Indications, Deviation Causes & Corrections:
