Solar Sensor: Testing and Inspection

ACS (Solar Radiation) Inspection





Step 1 (Preparation)

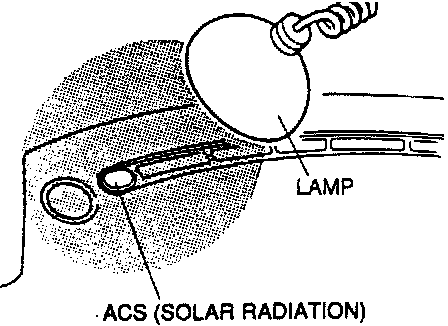

Shine a lamp (60W) on the ACS (Solar Radiation) from a distance of approx. 10 cm {3.9}.

Step 2
1. Turn the ignition switch OFF.
2. Disconnect the ACS (Solar Radiation) connector.

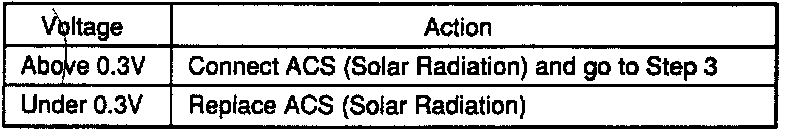

3. Measure the output voltage between the ACS (Solar Radiation) terminals.

Step 3

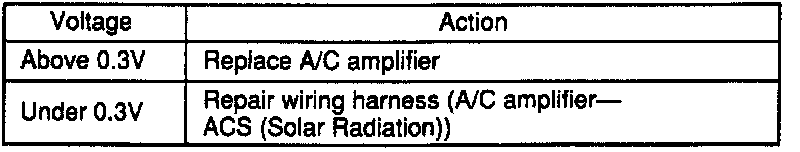

1. Disconnect the NC amplifier connector.

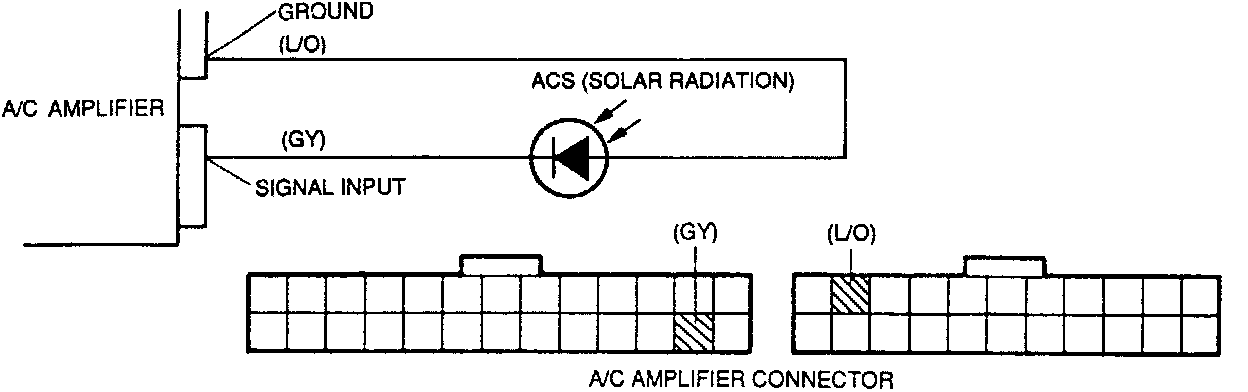

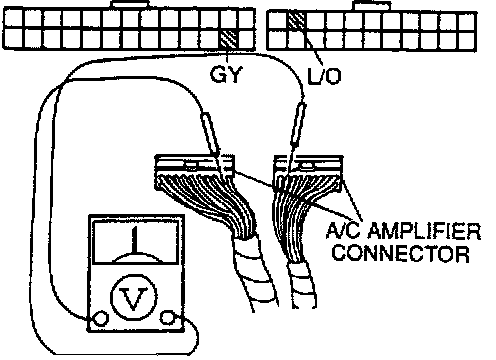

2. Measure the voltage between terminal wires (GY) and (L/O) of the connector.
