Camber

1. Loosen cam nut on upper link, Fig. 1.

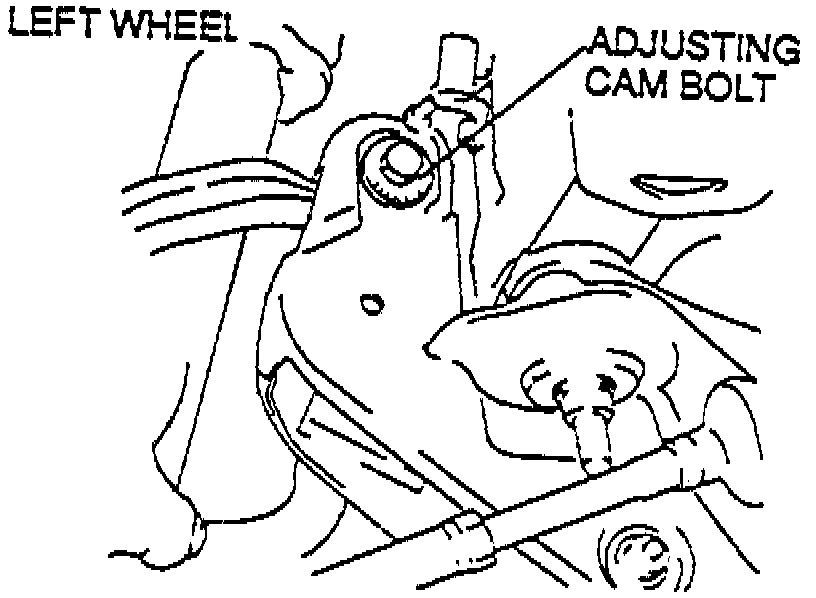

Fig. 1 Camber Adjusting Bolt Location:

2. Turn adjusting cam bolt to provide correct camber angle as shown in Fig. 2. Turning adjusting cam bolt one graduation changes camber angle about 14 minutes.

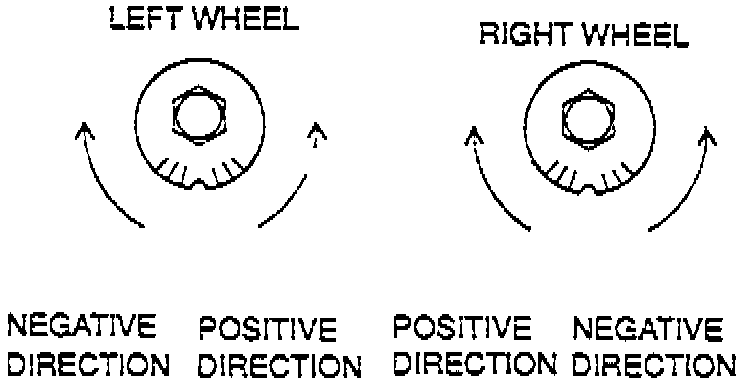

Fig. 2 Camber Angle Adjustment:

3. Torque cam nut to 69 - 86 ft.lb.
4. Adjust toe-in to specifications.
