Fuel Filter: Service and Repair

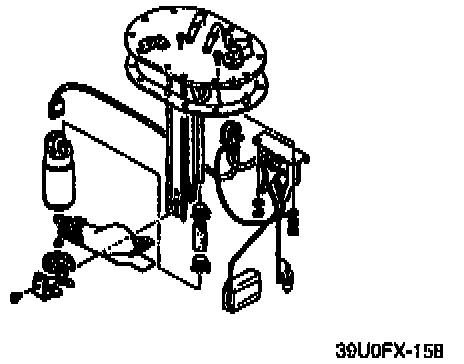

Replacement / Low-Pressure Side (In-Tank Filter)
Refer to "Fuel Pump/ Service and Repair".

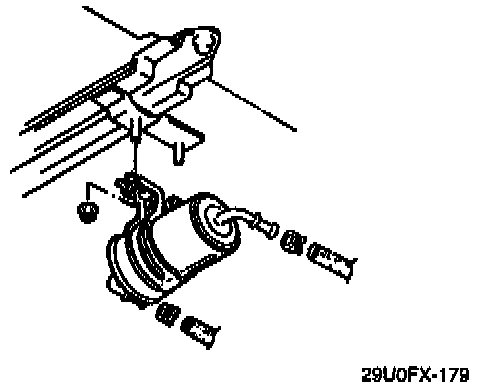

Replacement/ High-Pressure Side (In-Line Filter)

NOTE: The fuel filter must be replaced at the intervals outlined in the maintenance schedule.

WARNING: Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.




1. Disconnect the fuel hoses from the fuel filter.
2. Remove the fuel filter and bracket.
3. Install in the reverse order of removal.
4. Verify that the fuel hoses are pushed fully onto the fuel filter nipple.
