Powertrain Management: Adjustments

Adjustment / Preparation
1. Warm up the engine to normal operating temperature.
2. Turn all electric loads OFF.

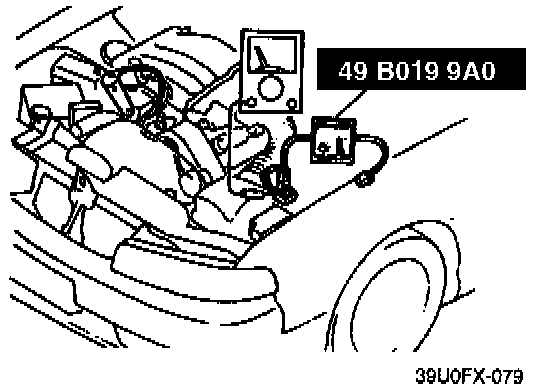

3. Connect the Special Service Tool (SST) to the data link connector.
4. Connect a timing light.





5. Connect a tachometer to the data link connector, Ignition (IG) terminal as shown.

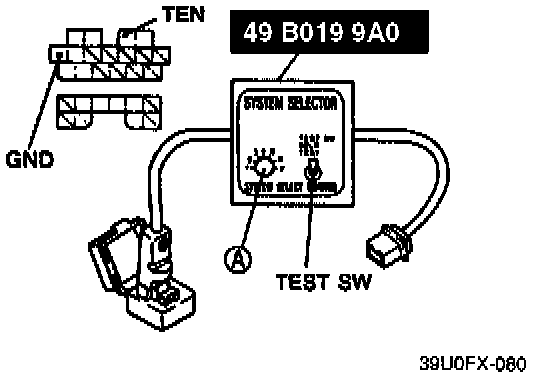

6. Set switch A to position 1.





7. Set TEST Switch (SW) to SELF-TEST.
8. If the SST is not used, jump across the TEN Terminal and the Ground (GND) Terminal of the data link connector.

Ignition Timing
1. Perform "Adjustment/Preparation" steps 1 - 8 from above.

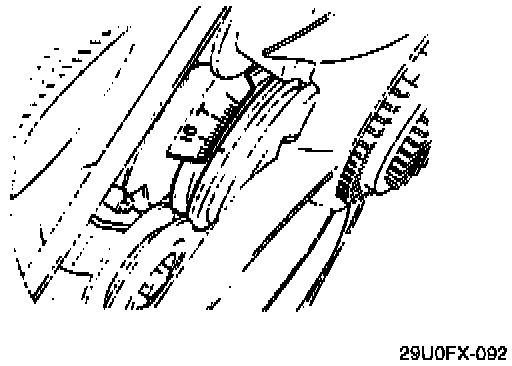

2. Check if the timing mark (yellow) on the crankshaft pulley and the mark on the timing belt cover are aligned.

Specification: BTDC 11-13°

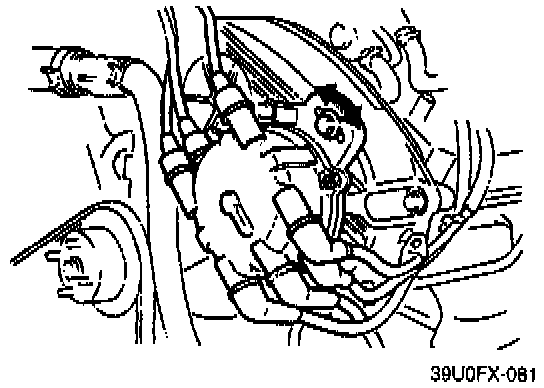

3. If the marks are not aligned, loosen the distributor lock bolts, and turn the distributor to make the adjustment.
4. Tighten the distributor lock bolts to the specified torque.

Tightening Torque: 19-25 Nm (14-18 ft.lb.)

5. Disconnect the SST.
6. Check if the timing mark (yellow) on the crankshaft pulley and the mark on the timing belt cover are aligned.

Specification: 7-2O° BTDC




Idle Speed
1. Perform "Adjustment/Preparation" steps 1 - 8.
2. Check that the idle speed is within specification.

Idle speed (P range): 680-72O RPM

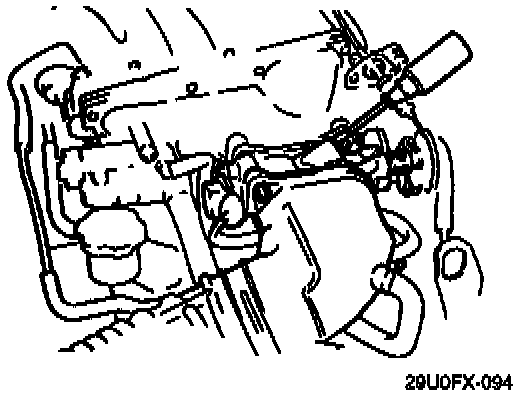

3. If not within the specification, adjust the idle by turning the air adjusting screw.
4. Disconnect the SST.
