Component Locations

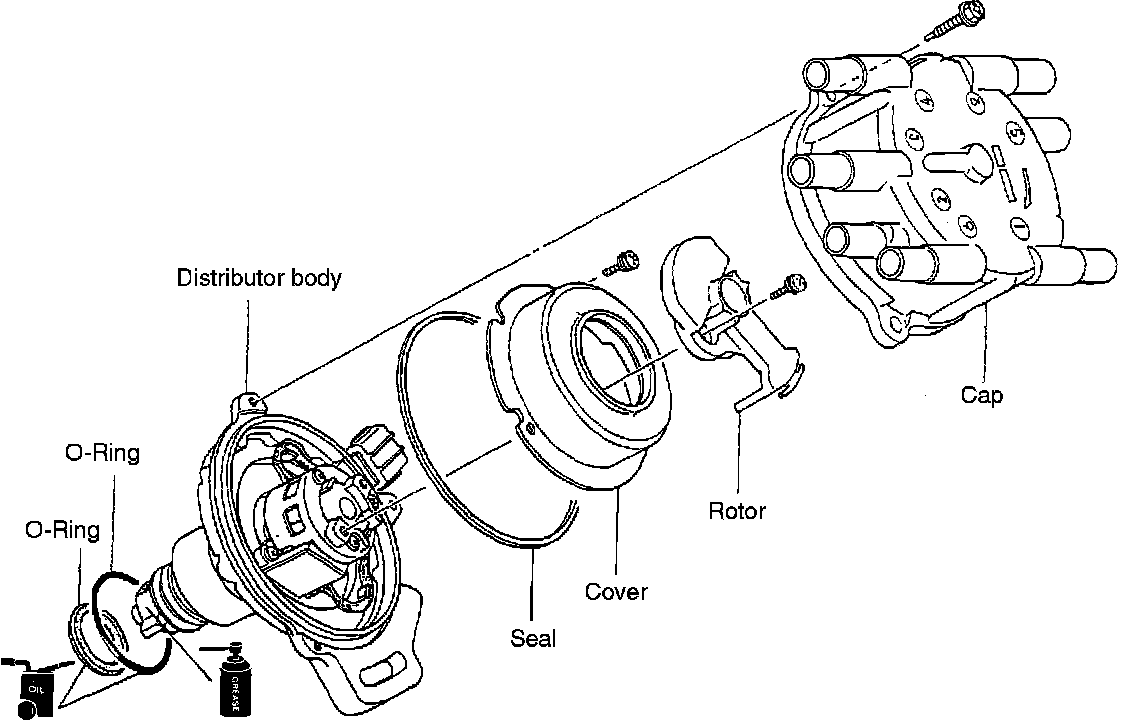

Distributor Assembly:

Crank angle sensor 1 is part of the distributor assembly. It provides a G and the Ne 1 signal to the ECU.

View: Crankshaft Position Sensor 2:

Crank angle sensor 2 is mounted below the crankshaft pulley and provides the Ne 2 signal to the ECU.
