EGR Valve Position Sensor: Testing and Inspection

Code 16:

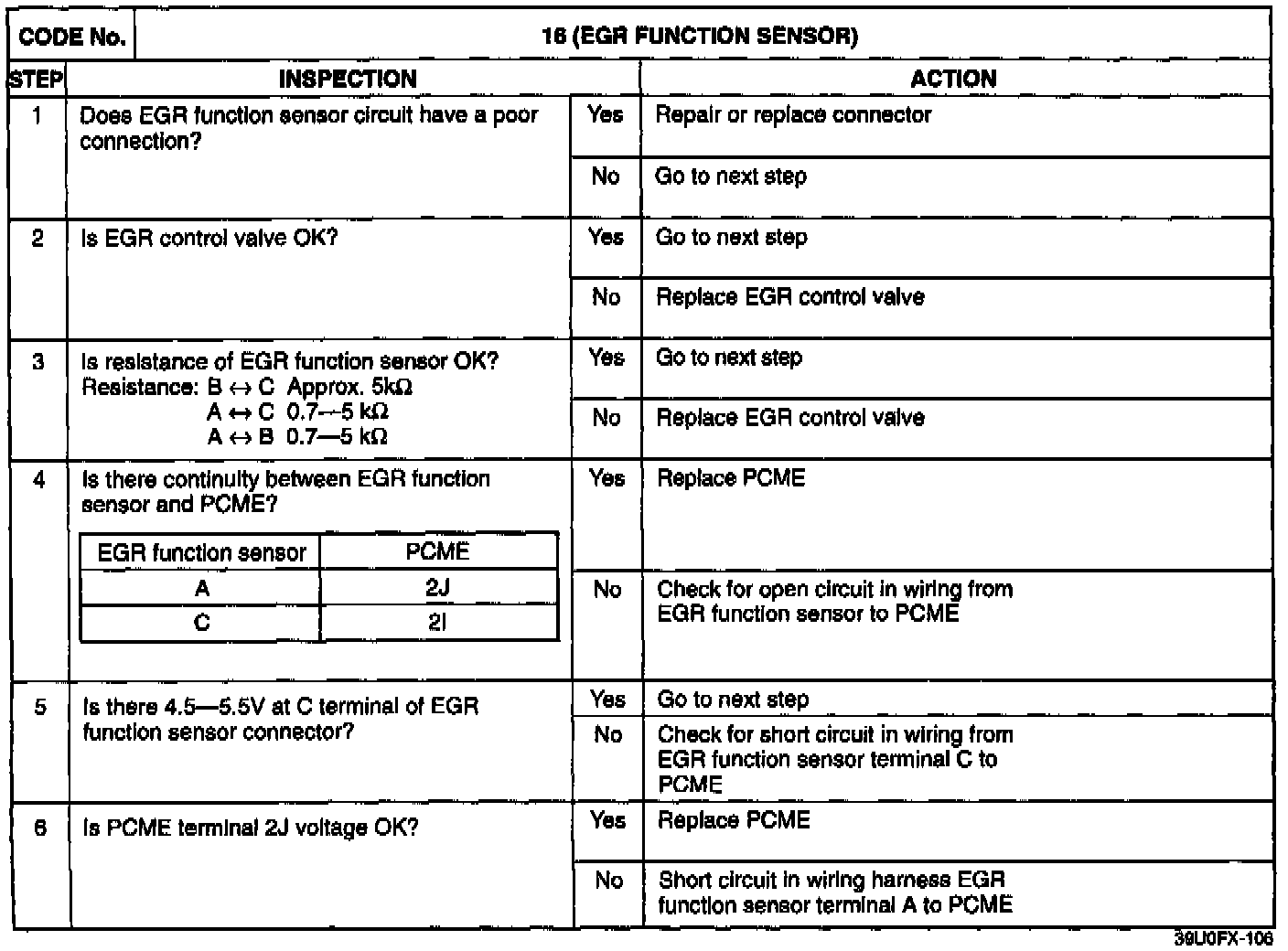

Diagnostic Chart

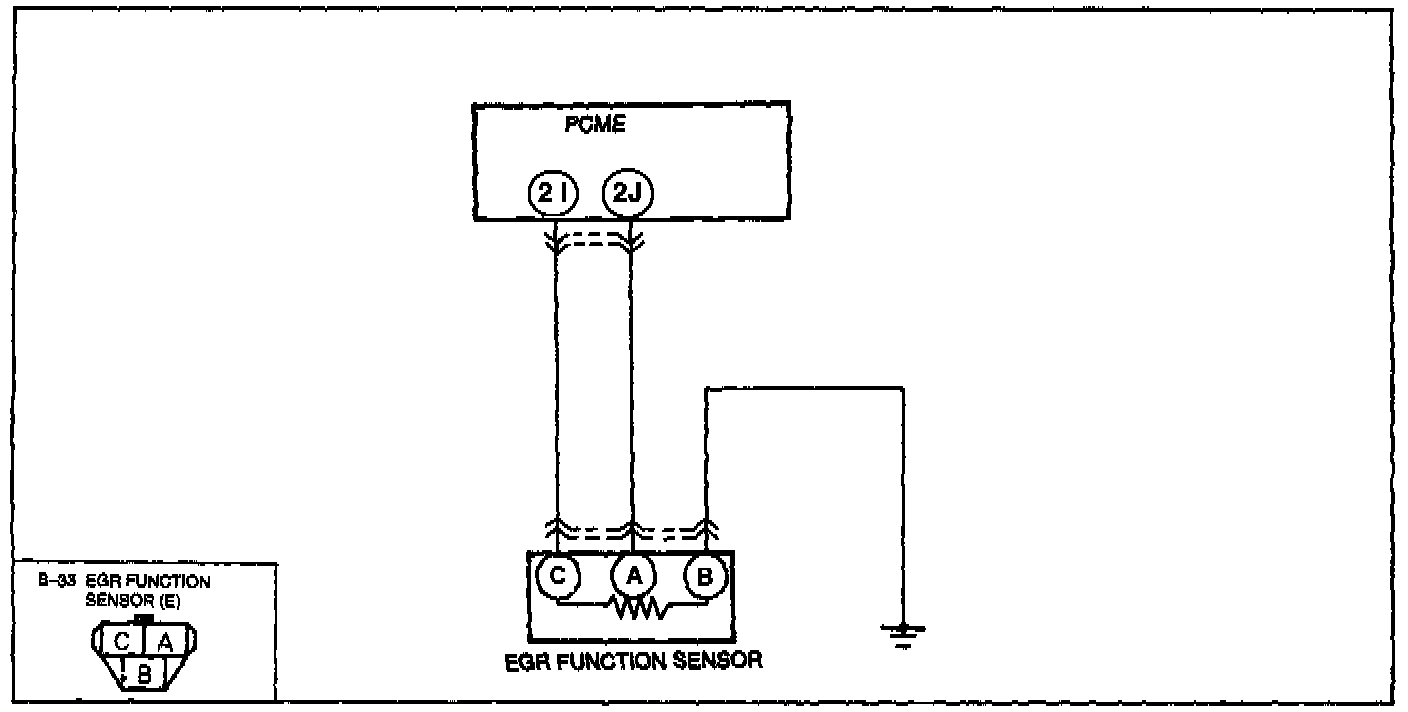

Circuit Diagram:




Circuit Diagram
