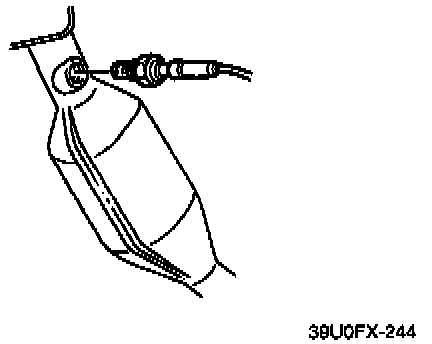

Oxygen Sensor: Service and Repair

Replacement
1. Disconnect the connector.
2. Remove the heated oxygen sensor and gasket.
3. Install the heated oxygen sensor and a new gasket.

Tightening Torque: 29-49 Nm (22-36 ft.lb.)
