Power Steering Pressure Switch: Testing and Inspection

STEERING PRESSURE SENSOR
Inspection
1. Disconnect the steering pressure sensor connector.

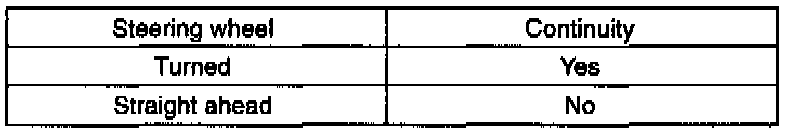

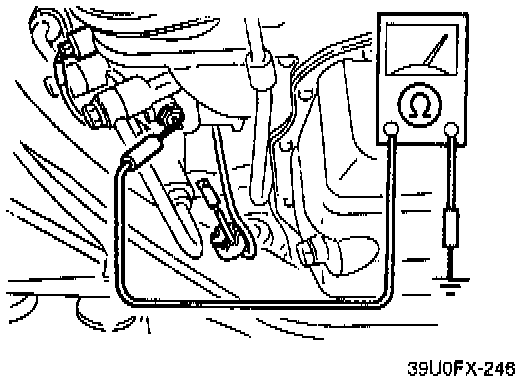

2. Start the engine, and check continuity of the sensor.

3. Replace the steering pressure sensor if not as specified.
