Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR 1
The crankshaft position sensor 1 is an integral component of the ignition distributor assembly and is not serviced separately.

CRANKSHAFT POSITION SENSOR 2

Replacement

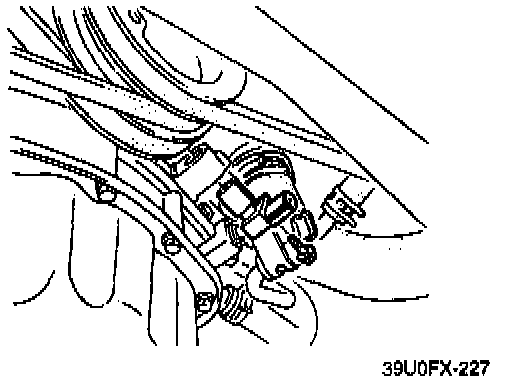

View: Crankshaft Position Sensor 2:

1. Disconnect the crankshaft position sensor connector.
2. Remove the crankshaft position sensor bolt.
3. Install in the reverse order of removal.

Tightening Torque: 7.8 - 11 Nm (69 - 95 in.lb.)
