Ignition Cable: Testing and Inspection

Inspection

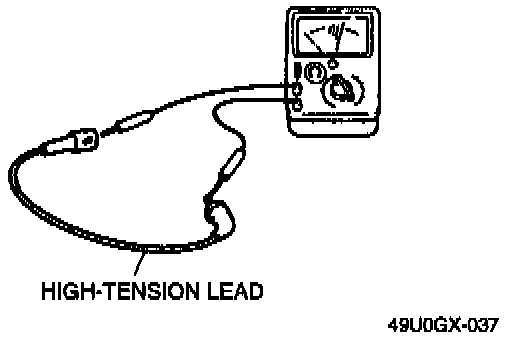

1. Measure resistance of the high-tension leads.

Specification: 9.6-22.4 k Ohms per/m (3.28 ft)

2. If not within specifications, replace the high-tension lead set.
