Ignition Coil: Service and Repair

Replacement

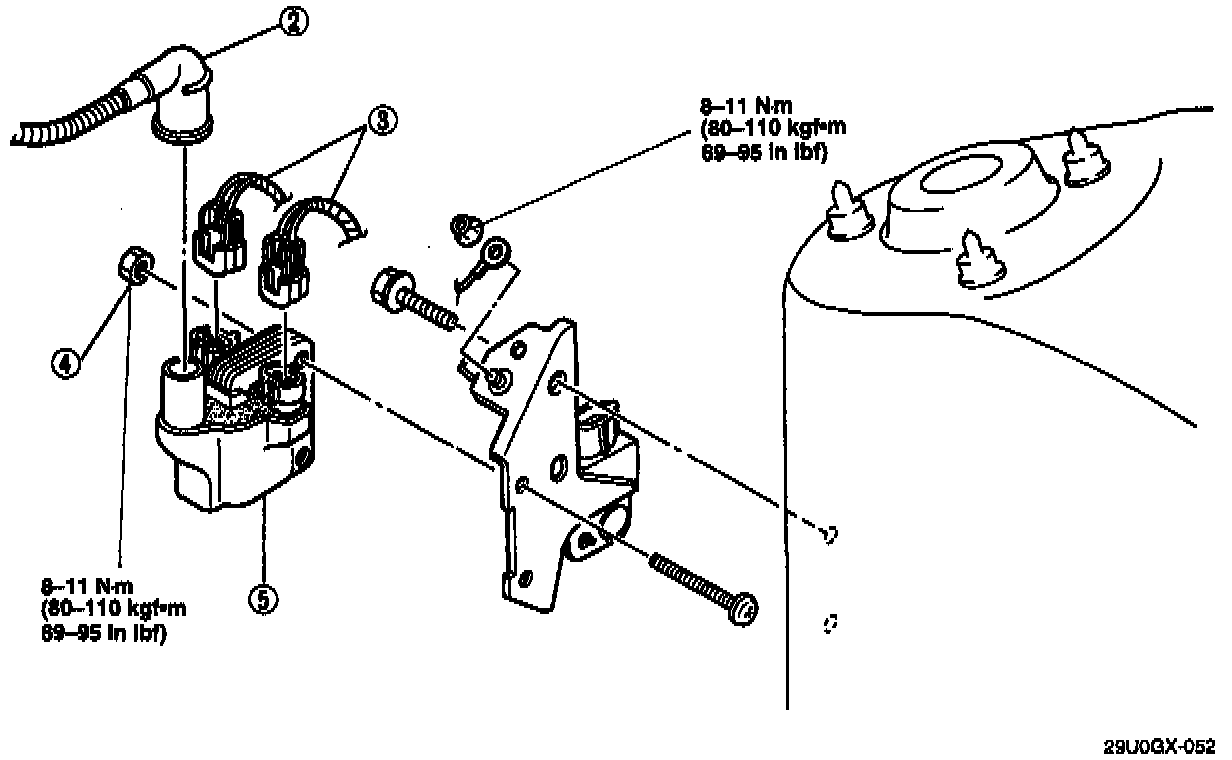

A. Remove in the order shown in the figure.

1. Intake Air Hose
2. High-tension Lead
3. Connector
4. Nut
5. Ignition Coil

B. Install in the reverse order of removal.
