Control Module, A/T

TERMINAL VOLTAGE CHARTS (Reference Data)

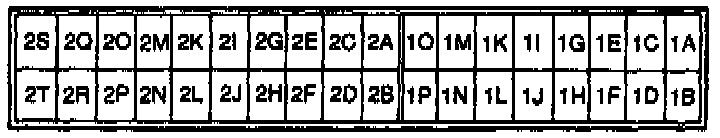

Terminal ID

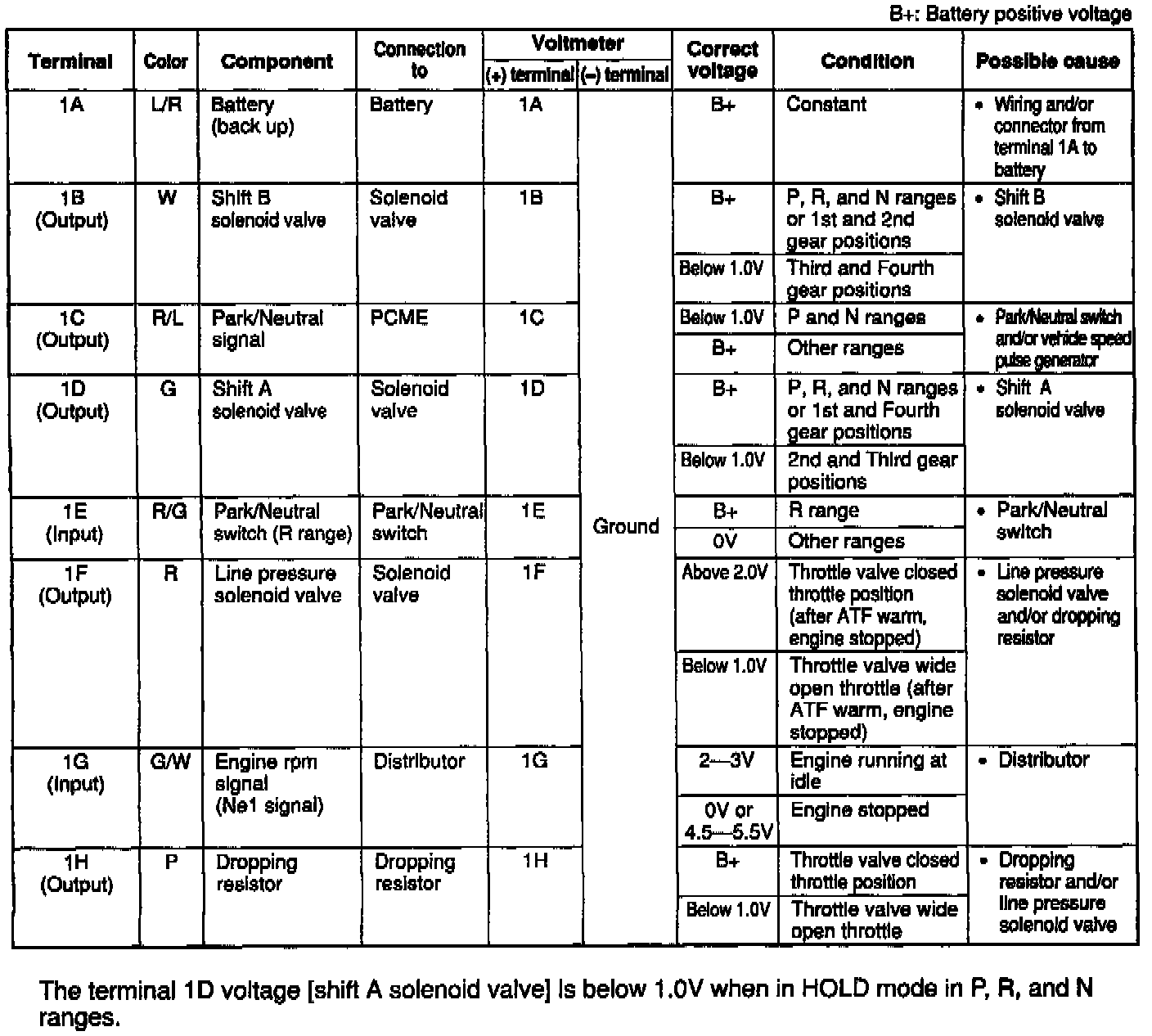

Terminals 1A Through 1H





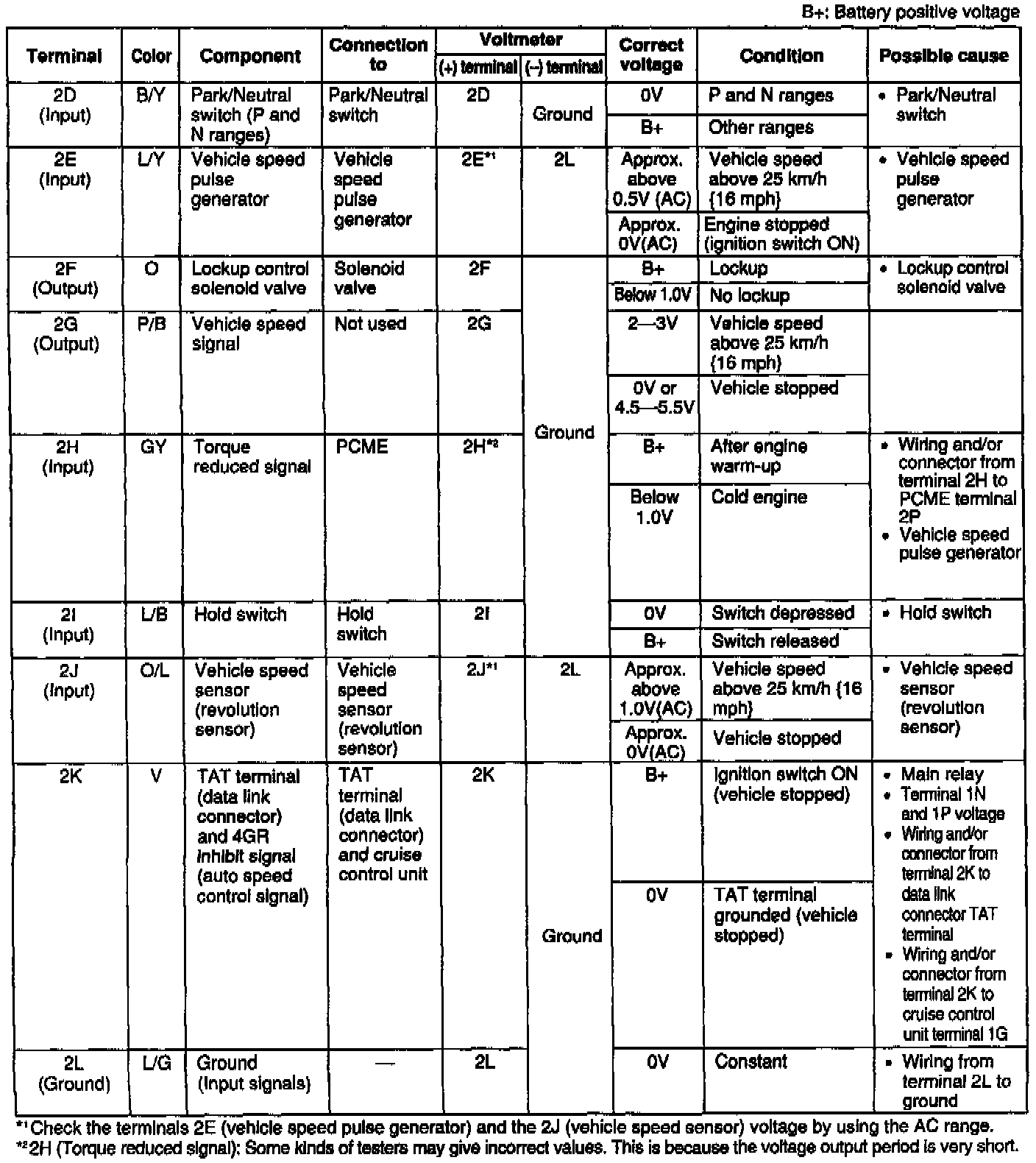

Terminals 1I Through 2C





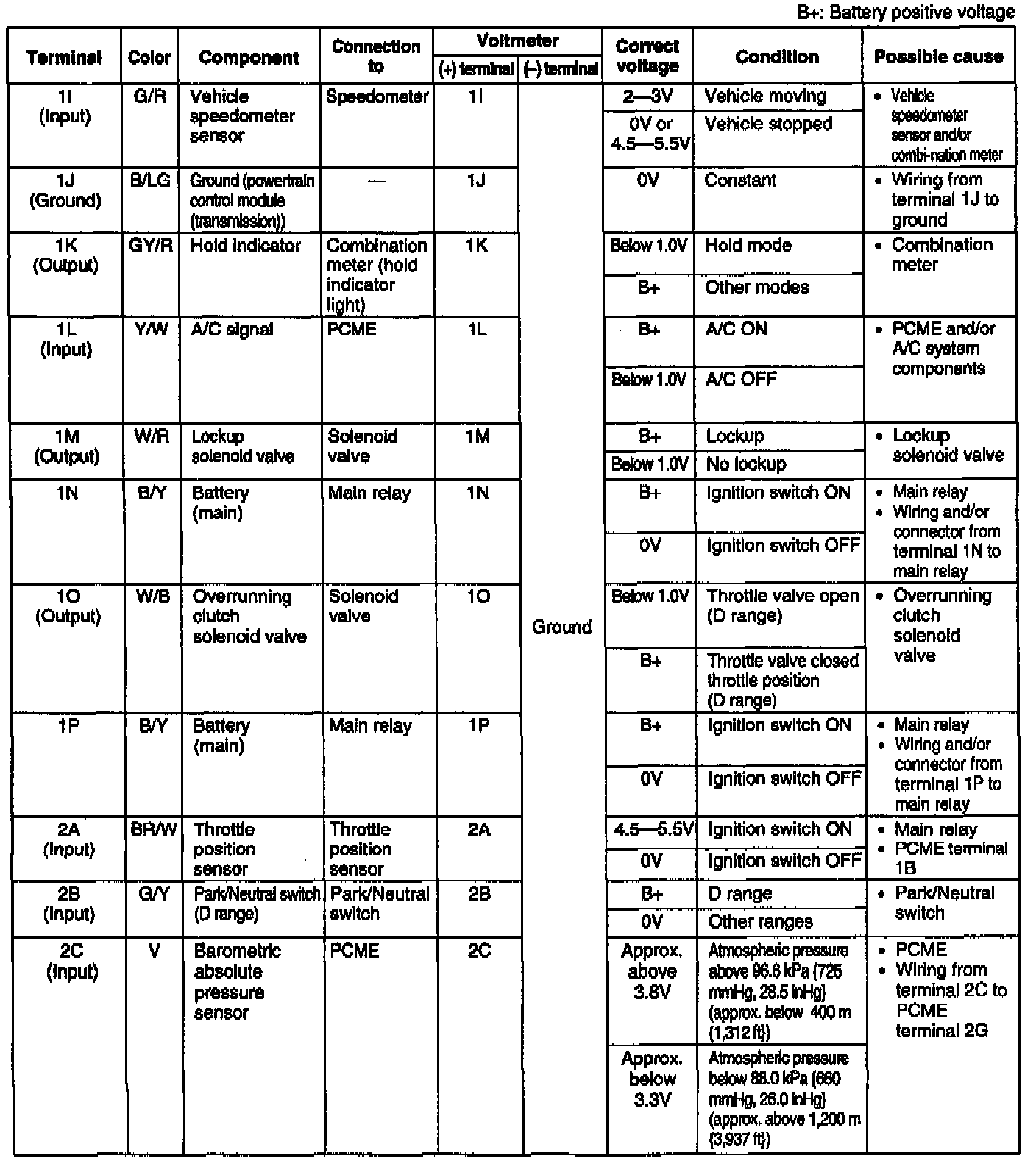

Terminals 2D Through 2L





Terminals 2M Through 2T
