Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1994
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 1A-1H
Terminals 1A-1H

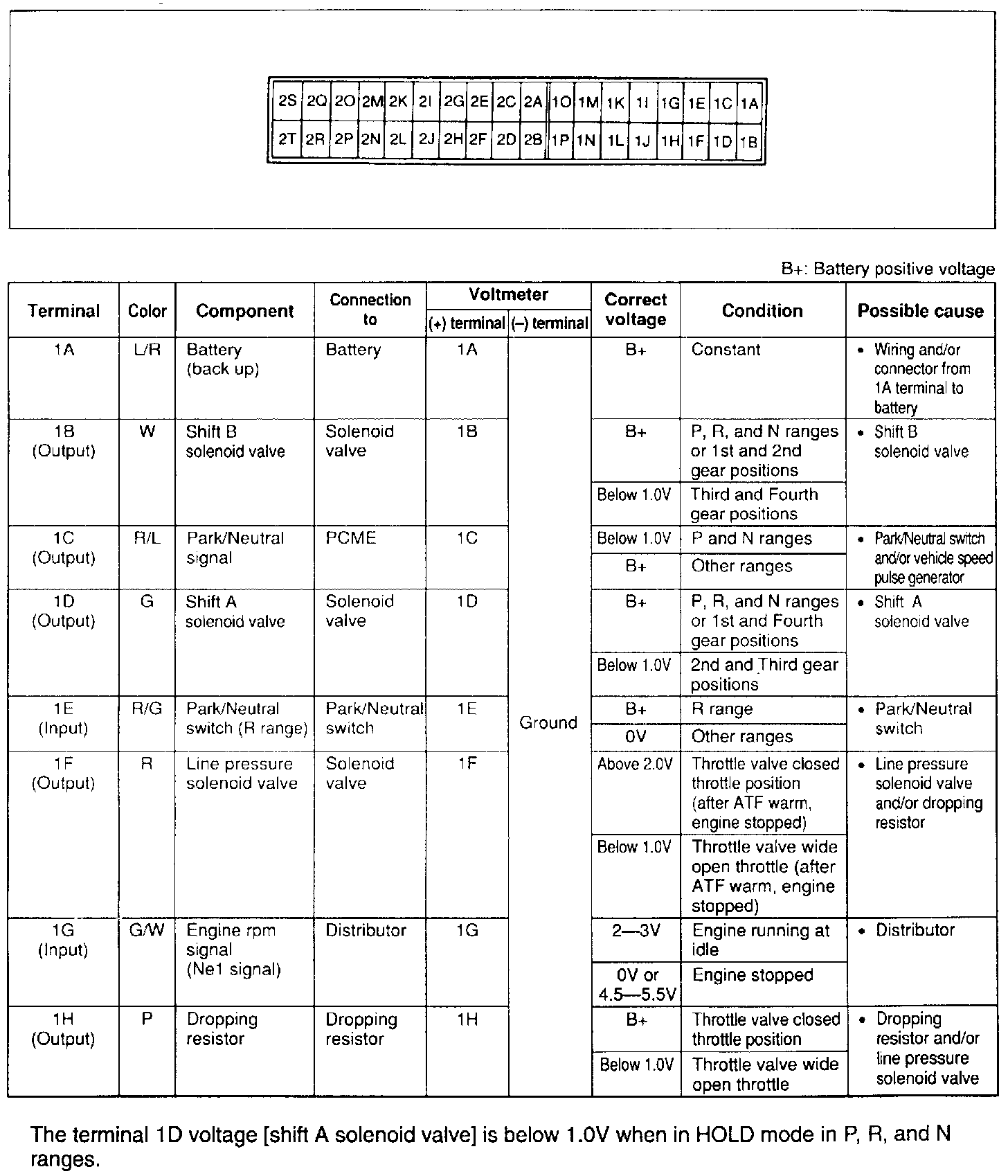

Terminal Voltage Chart:
