929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 1I-2C
Terminals 1I-2C

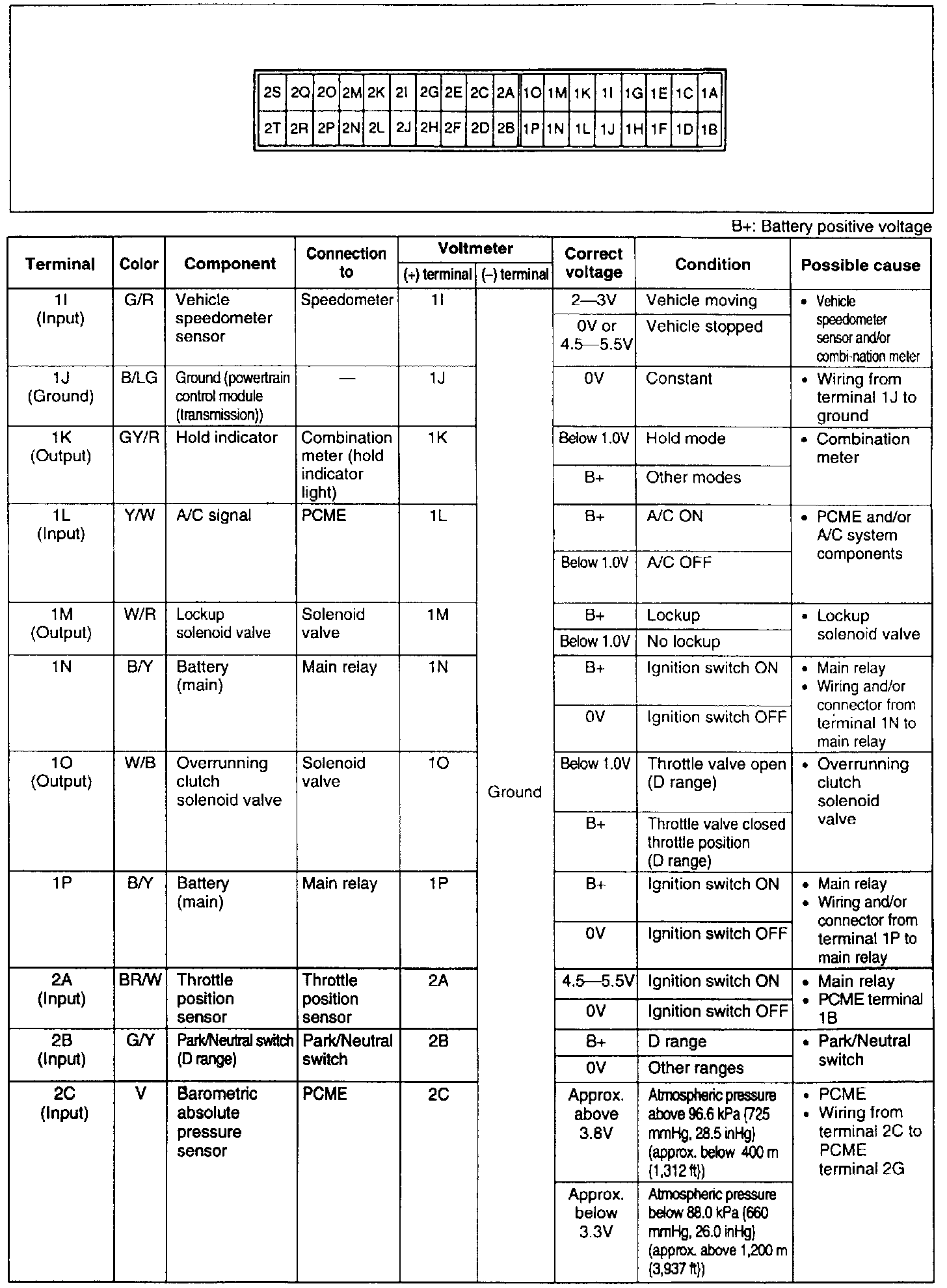

Terminal Voltage Chart:
