X-01

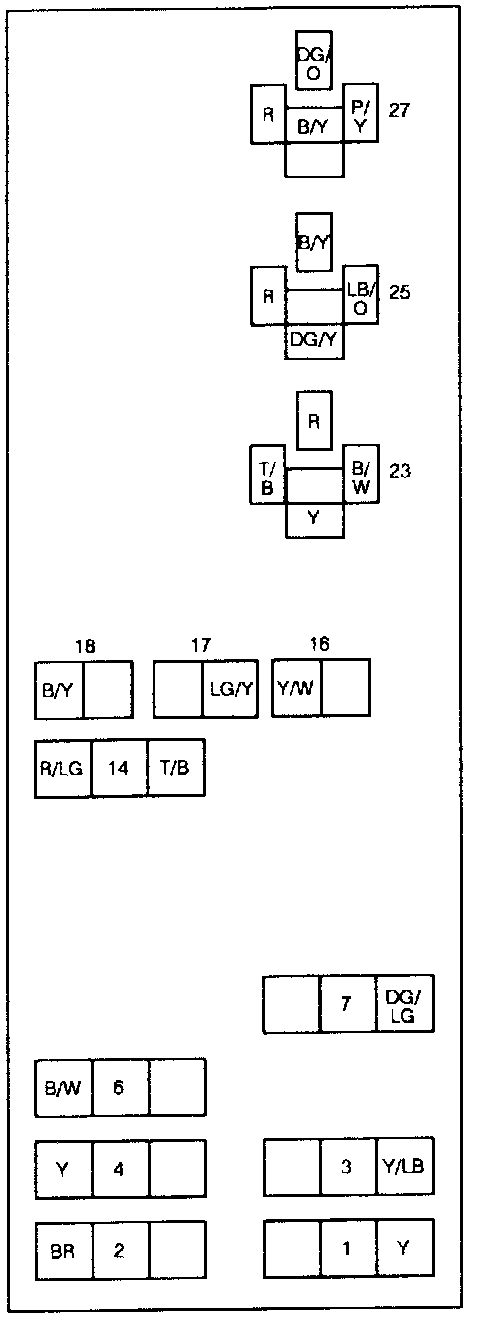

X-01 Power Distribution Box (ECS):

Position Relay

23 Powertrain Control Relay
25 Fuel Pump Relay
27 A/C WOT Relay


High Current Fuse Valve Amps Color Code

20A Plug-in Yellow
30A Plug-in Green
40A Plug-in Orange
50A Plug-in Red
60A Plug-in Blue
