X-03

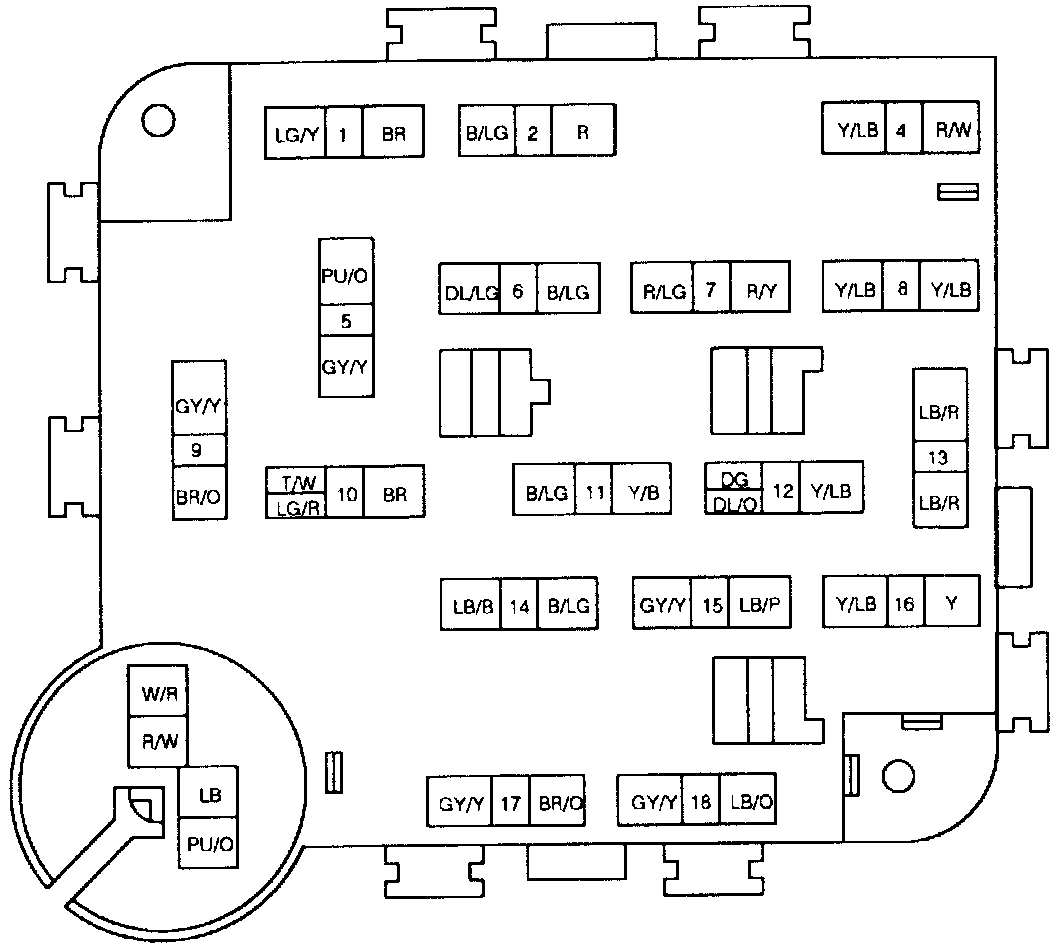

X-03 Fuse Box (MA):





Fuse Valve Amps Color Code

4 Pink
5 Tan
10 Red
15 Light Blue
20 Yellow
25 Natural
30 Light Green
