Mazda
>>
1994
>>
B2300 L4-2.3L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Common Connector List
>>
X-05
X-05

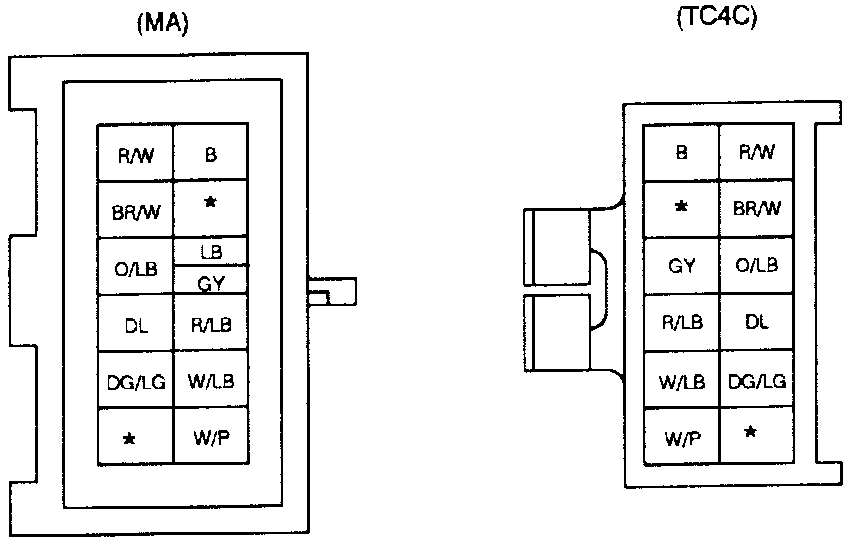

X-05 Connector Between Main (MA) And Transfer Case 4 Wheel Drive Control (TC4C):
