X-43
X-43

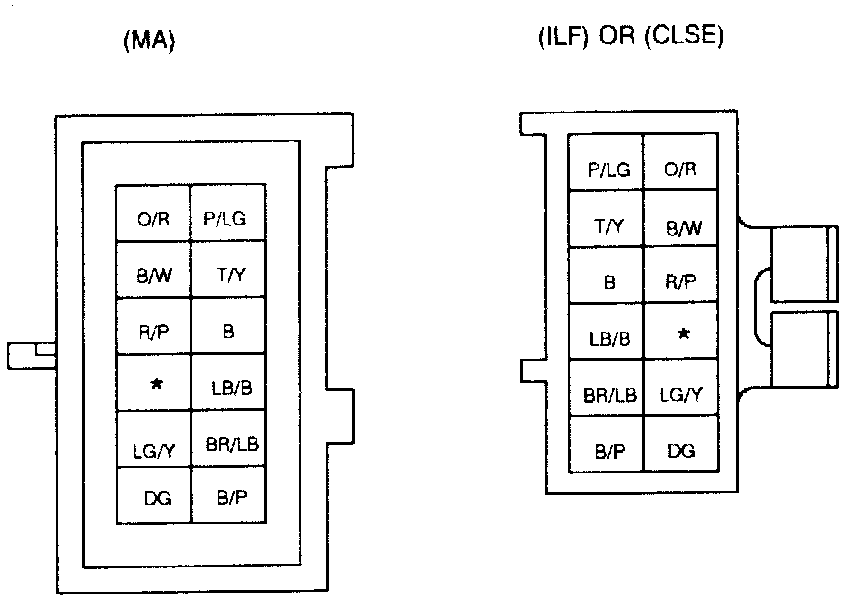

X-43 Connector Between Main (MA) And Interior Lamp Feed (ILF) (Cab Plus) Or Courtesy Lamp Switch Extension (CLSE) (Regular Cab):
