Air Conditioning Switch: Testing and Inspection
Service Tips:

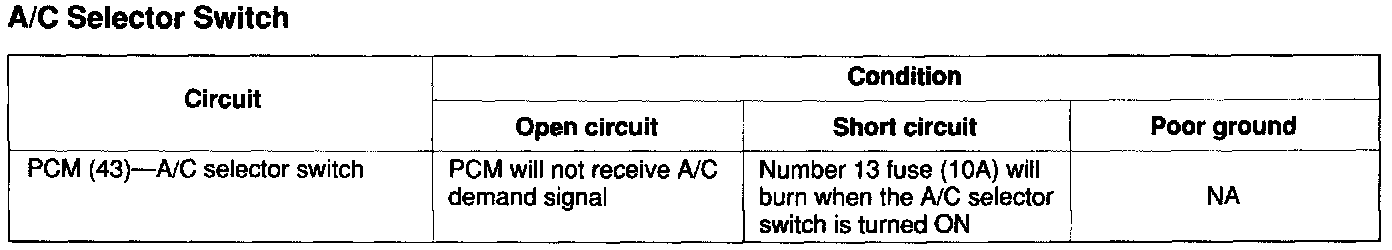

A/C SELECTOR SWITCH (AT ONLY) -
If the circuit is open, the PCM will not receive the A/C demand input signal.
-
If the circuit is shorted, the Number 13 fuse (10A) will burn when the
A/C selector switch is turned ON.
