Evaporator Core: Service and Repair
A/C EVAPORATOR ASSEMBLY Removal/Installation 1.
Discharge the
refrigerant system.
2.

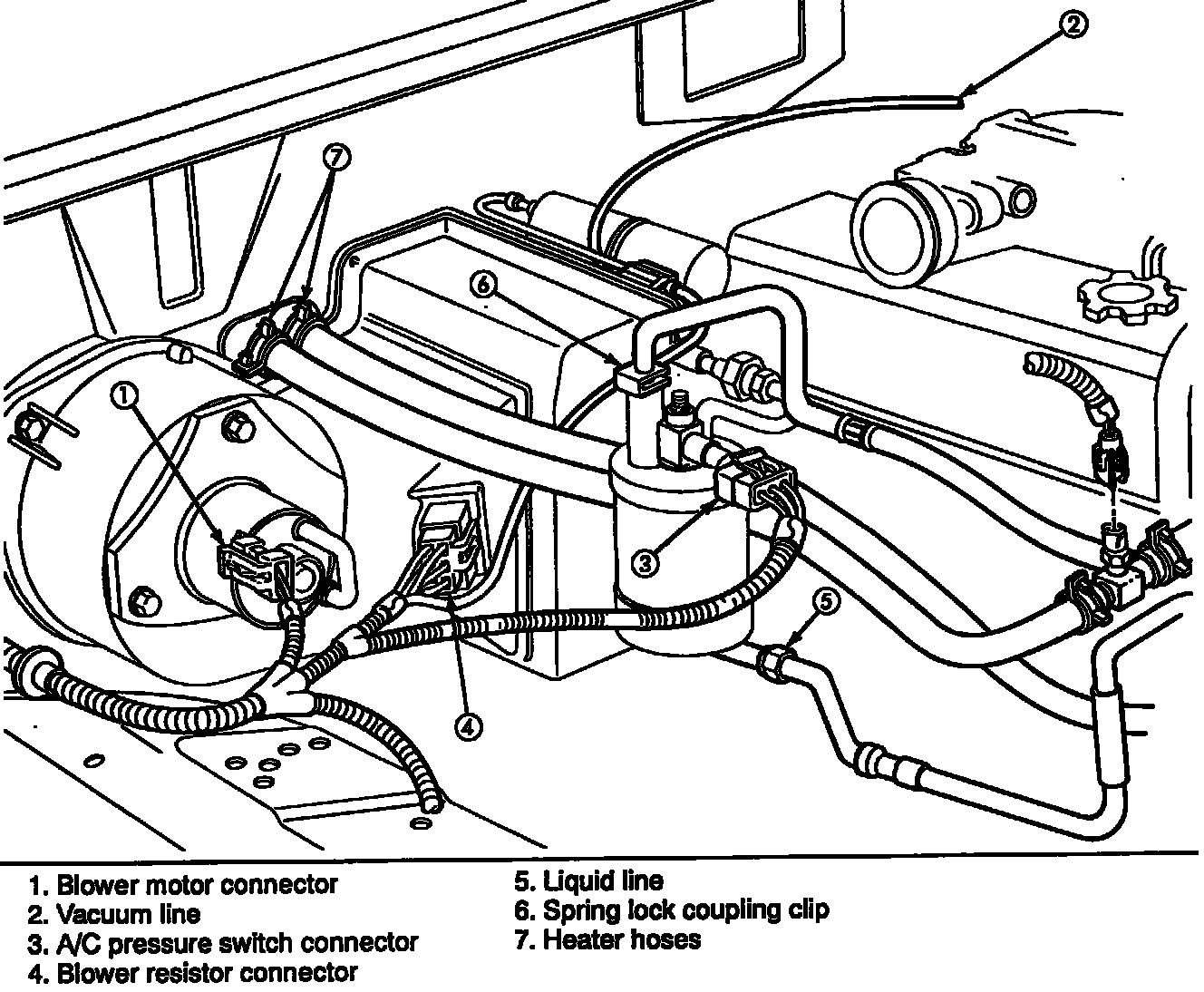

Remove in the order shown in the figure.
3.
Install in the reverse order of removal.

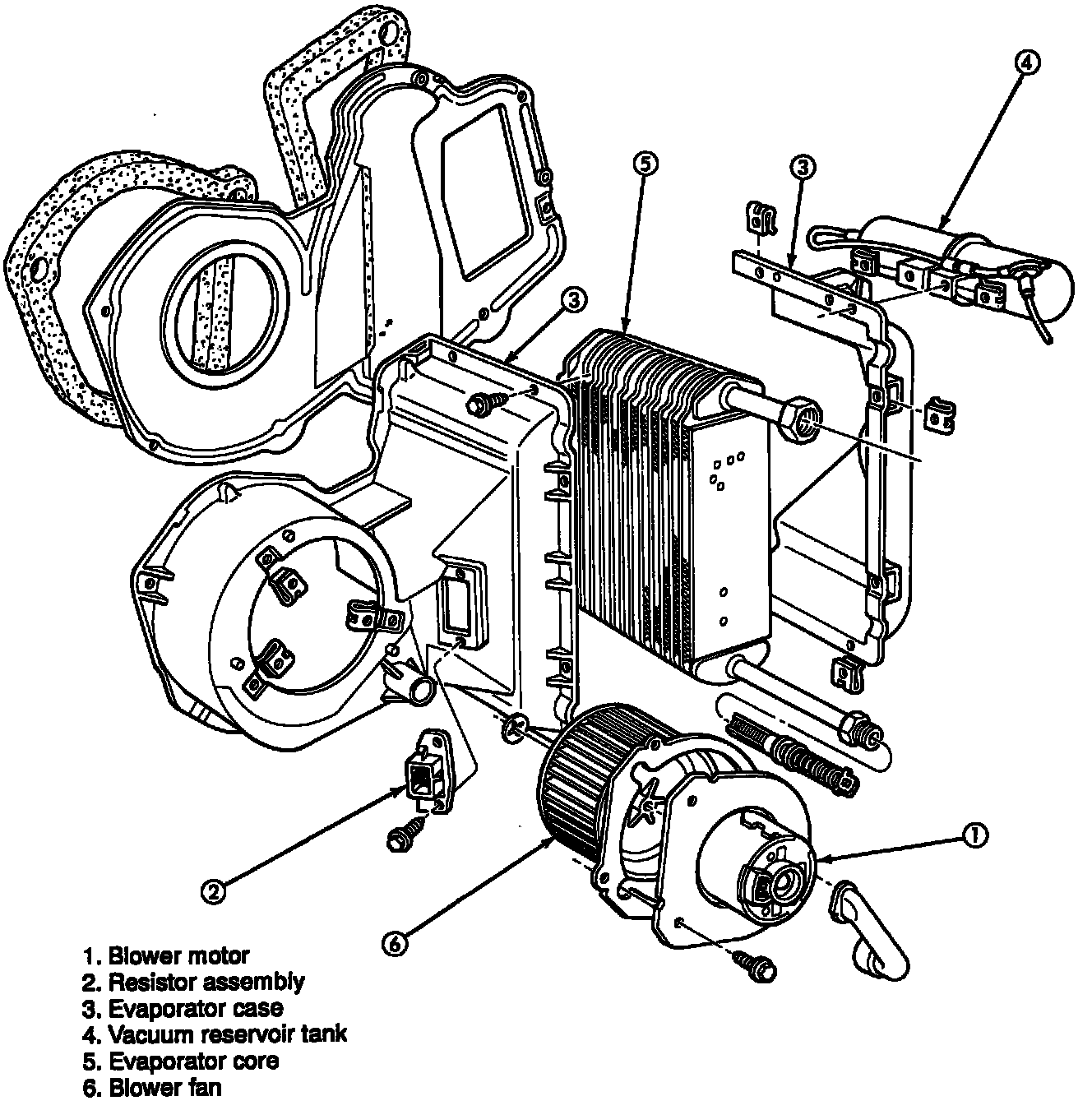

Disassembly/Assembly -
Disassemble and assemble the evaporator assembly as shown in the figure.
