Heating and Air Conditioning: Testing and Inspection

Refrigeration System Diagnosis

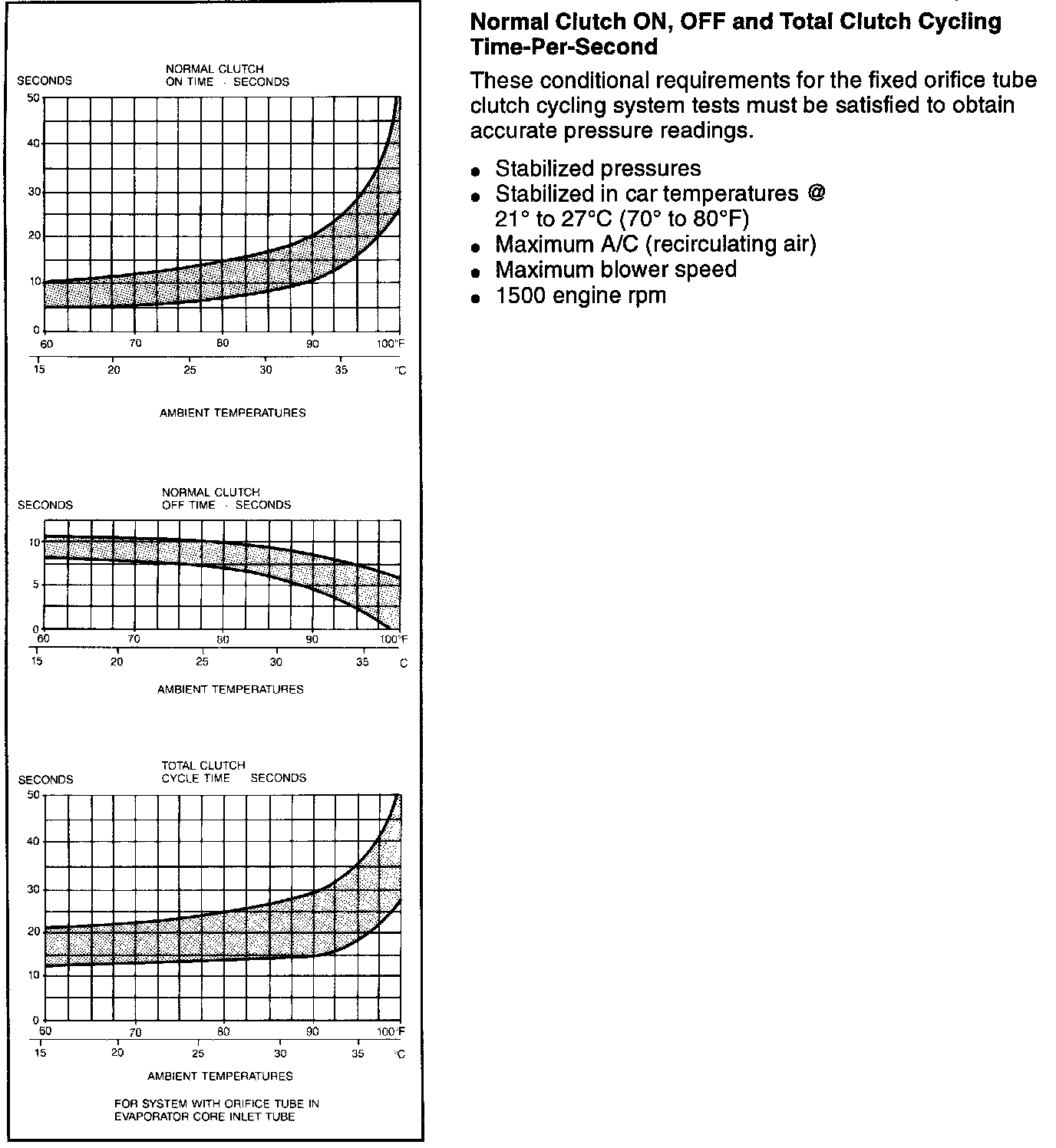

The diagnosis charts for the fixed orifice tube clutch cycling system are unique to that system. Normal refrigeration pressures run higher in a fixed orifice tube system and the pressure evaluation chart is also different for the fixed orifice tube system. Refer to the following charts.
