Fluid - M/T: Testing and Inspection

INSPECTION

Note: Park the vehicle on level ground.

1. Remove the oil level plug and washer.

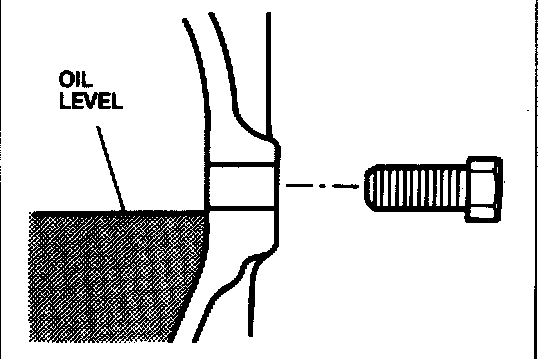

2. Verify that the oil is near the bottom of the plug port.
3. If the oil level is low, add the specified amount and type of oil through the oil level plug hole.
Specified oil
Grade: ATF Dexron - II
1995-96 MERC0ON or M-III
4. Install a new washer and the oil level plug.
Tightening torque: 40-58 N.m {4.1-5.7 kgf.m, 30-42 ft.lbf}






REPLACEMENT

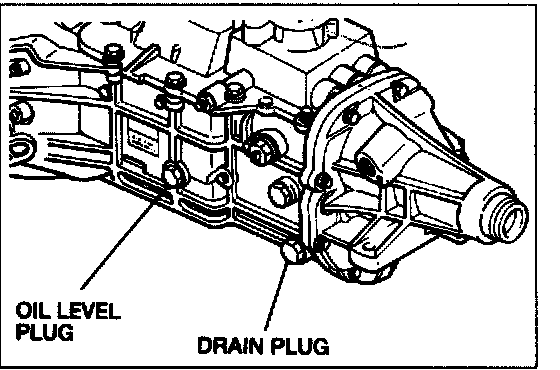

1. Remove the drain plug and washer.
2. Drain the oil into a suitable container.
3. Install a new washer and the drain plug.
Tightening torque: 40-58 N.m {4.1-5.7 kgf.m, 30-42 ft.lbf}






4. Remove the oil level plug with washer and add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.
Specified oil
Grade: ATF Dexron�-II or M-III
Capacity: 2.65 liters {5.6 US pt, 4.5 Imp pt}
5. Install a new washer and the oil level plug.
Tightening torque: 40-58 N.m {4.1-5.7 kgf.m, 30-42 ft.lbf}
