A/C Signal
>>
Testing and Inspection
>>
Component
Component

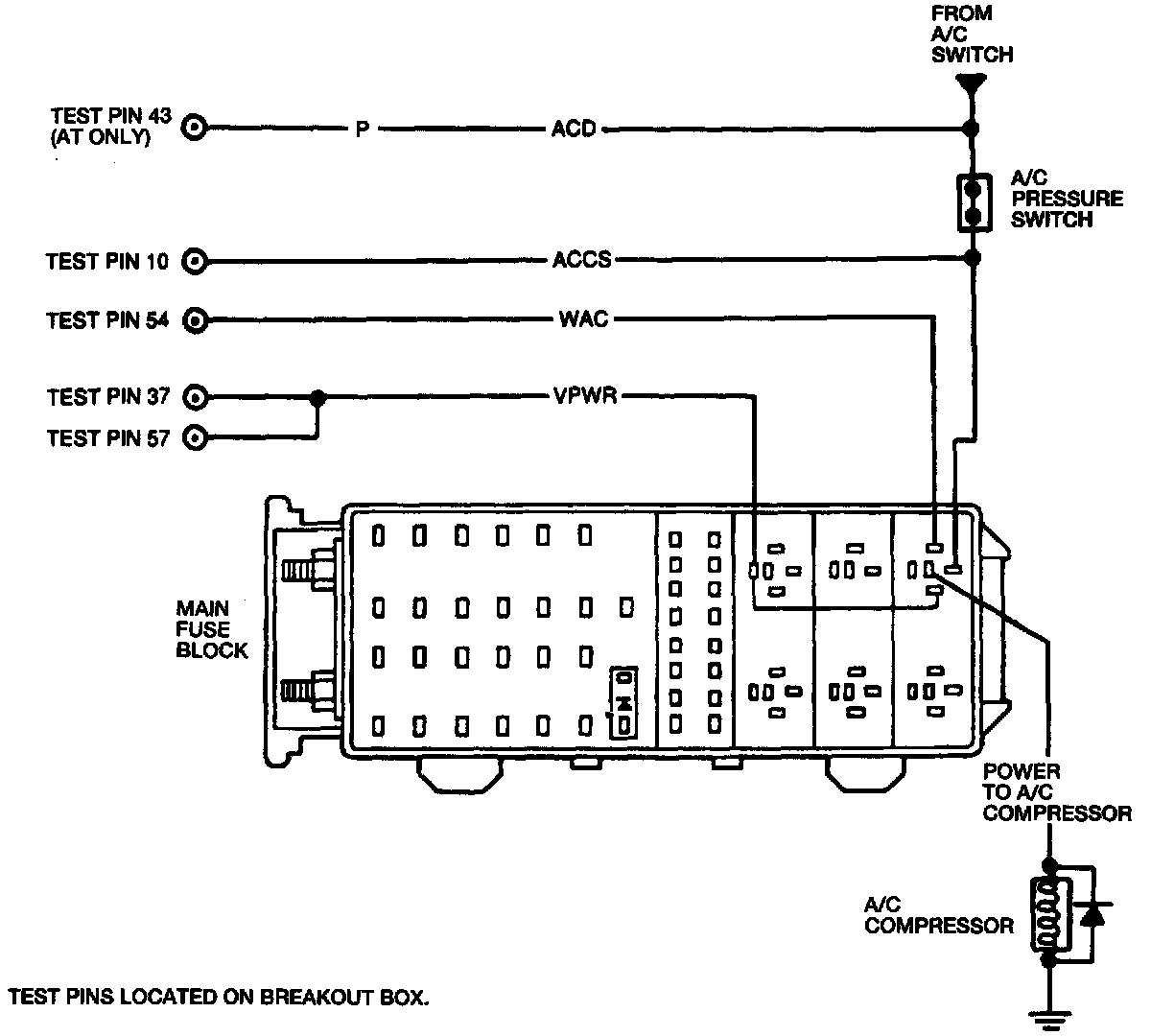

Main Fuse Block:
With the A/C Switch on, is there battery voltage at terminal 10 of the Powertrain Control Module
(
PCM
)
with the PCM connector disconnected?
Yes - Replace
PCM
.
No - Check A/C Switch.
